NCV78723MW5R2G
IC LED DRVR RGLTR PWM 1.6A 24QFNManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More

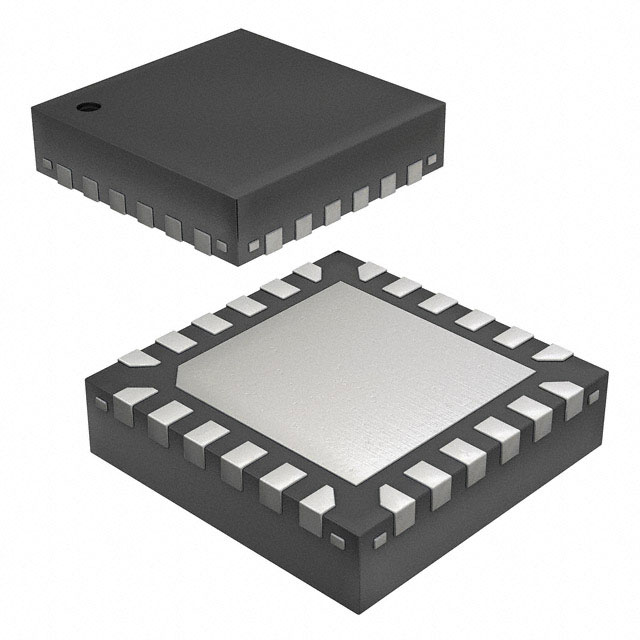

The onsemi NCV78723MW5R2G is a dual-output, automotive-grade DC-DC buck LED driver IC. Featuring integrated switches, it supports both analog and PWM dimming with a maximum output current of 1.6A per channel. This device operates with a supply voltage range of 6V to 67V and provides an output voltage up to 67V. The NCV78723MW5R2G is designed for surface mount applications with a 24-QFNW (5x5) wettable flank package, supplied on tape and reel. It is qualified to AEC-Q100 standards and operates across a wide temperature range of -40°C to 150°C. This component is suitable for automotive lighting applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VQFN Exposed Pad |
| Voltage - Output | 67V |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 2 |
| Frequency | 350kHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Applications | Lighting |
| Current - Output / Channel | 1.6A |
| Internal Switch(s) | Yes |
| Topology | Step-Down (Buck) |
| Supplier Device Package | 24-QFNW (5x5) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 67V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
