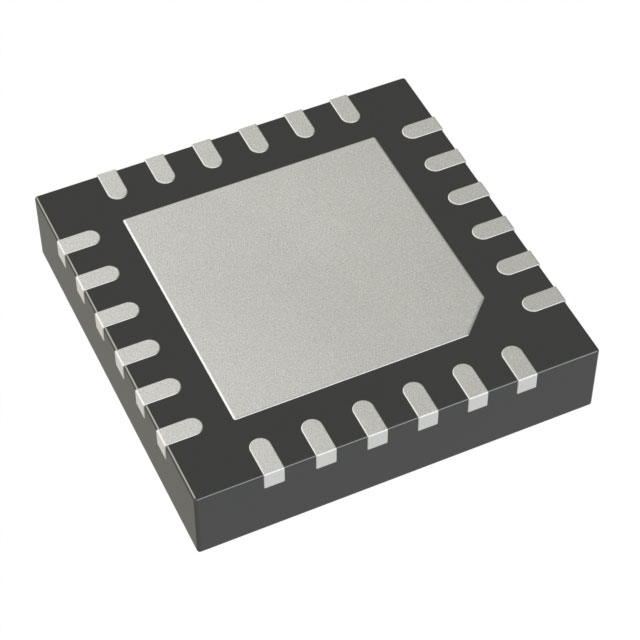

NCV78702MW1AR2G
IC LED DRIVER CTRLR PWM 24QFNManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More
The onsemi NCV78702MW1AR2G is a dual-output DC-DC boost controller designed for LED driver applications in the automotive industry. This device features Pulse Width Modulation (PWM) and SPI dimming control, enabling precise brightness adjustment. Operating with a supply voltage range of 5V to 30V, the NCV78702MW1AR2G supports an output voltage range of 0.4V to 64.8V. Its internal switching frequency is 350kHz, and it is housed in a 24-QFN (4x4) package suitable for surface mounting. The component is rated for an operating temperature range of -40°C to 150°C (TJ). This LED driver IC is commonly utilized in automotive lighting systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad |
| Voltage - Output | 0.4V ~ 64.8V |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Frequency | 350kHz |
| Type | DC DC Controller |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Applications | Lighting |
| Current - Output / Channel | - |
| Internal Switch(s) | No |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 24-QFN (4x4) |
| Dimming | PWM, SPI |
| Voltage - Supply (Min) | 5V |
| Voltage - Supply (Max) | 30V |
| Grade | Automotive |
