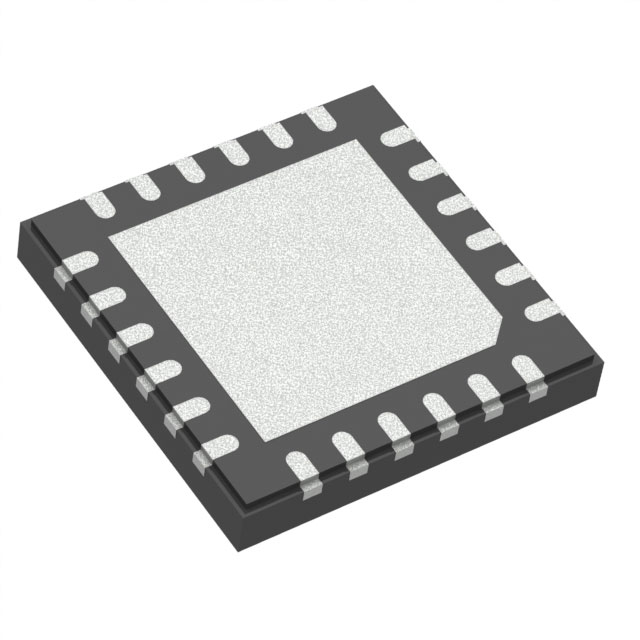

NCV78702MW0BR2G
IC LED DRIVER CTRLR PWM 24QFNManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More
The onsemi NCV78702MW0BR2G is a 2-output DC-DC controller featuring a step-up (boost) topology. This electronic component is designed for LED driving applications, offering PWM and SPI dimming capabilities. It operates with a supply voltage range of 5V to 30V and supports output voltages from 0.4V up to 64.8V. The device incorporates a 350kHz switching frequency and is housed in a 24-QFN (4x4) package with wettable flanks for surface mounting. Engineered for demanding environments, this automotive-grade component is suitable for applications in automotive lighting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad |
| Voltage - Output | 0.4V ~ 64.8V |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 2 |
| Frequency | 350kHz |
| Type | DC DC Controller |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Applications | Lighting |
| Current - Output / Channel | - |
| Internal Switch(s) | No |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 24-QFN (4x4) |
| Dimming | PWM, SPI |
| Voltage - Supply (Min) | 5V |
| Voltage - Supply (Max) | 30V |
| Grade | Automotive |
