NCV7681APWR2G
IC LED DRVR LIN PWM 100MA 16SOICManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More

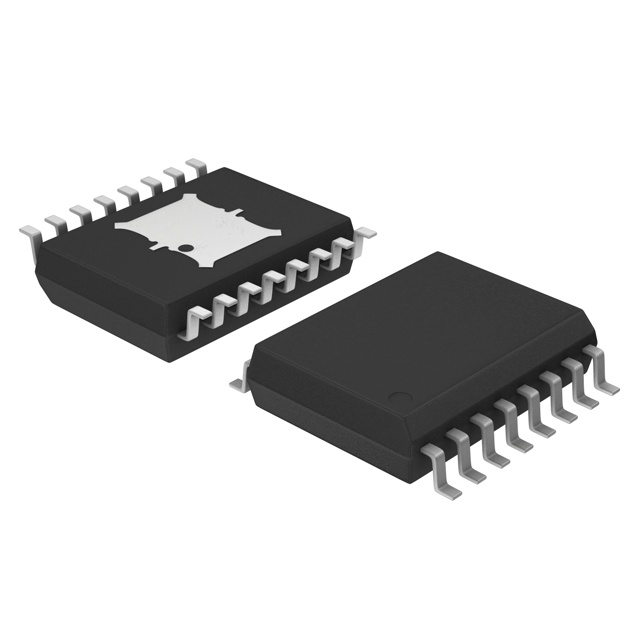

The onsemi NCV7681APWR2G is an 8-output linear LED driver designed for automotive lighting applications. This device features PWM dimming capability for precise control of LED brightness, with each output capable of delivering up to 100mA. The NCV7681APWR2G is qualified to AEC-Q100 standards and operates within an extended temperature range of -40°C to 150°C (TJ). It is supplied in a 16-SOIC package with an exposed pad, suitable for surface mount installation. The device supports input supply voltages up to 40V, making it versatile for various automotive lighting systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 37 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Frequency | - |
| Type | Linear |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Applications | Lighting |
| Current - Output / Channel | 100mA |
| Internal Switch(s) | No |
| Topology | - |
| Supplier Device Package | 16-SOIC |
| Dimming | PWM |
| Voltage - Supply (Min) | - |
| Voltage - Supply (Max) | 40V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
