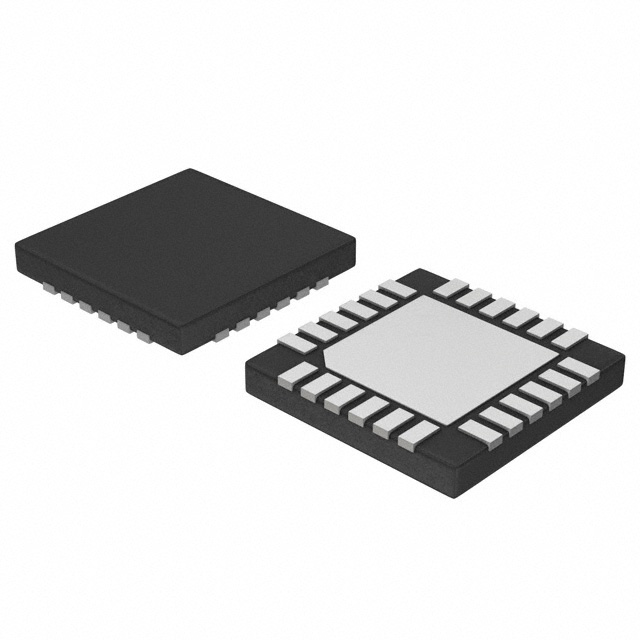

NCP5680MUTXG
IC LED DRIVER CTRLR 24UQFNManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More
The onsemi NCP5680MUTXG is a 2-output DC-DC controller for LED driver applications. This charge pump topology device operates at a 1MHz switching frequency and is housed in a 24-UQFN (3.5x3.5) package. Designed for surface mount applications, it features a minimum supply voltage of 2.7V and a maximum of 5.5V, with an output voltage range of 4.5V to 5.3V. The NCP5680MUTXG is suitable for camera flash applications. It is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-UFQFN Exposed Pad |
| Voltage - Output | 4.5V ~ 5.3V |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Frequency | 1MHz |
| Type | DC DC Controller |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Camera Flash |
| Current - Output / Channel | - |
| Internal Switch(s) | No |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 24-UQFN (3.5x3.5) |
| Dimming | - |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
Request a Quote
