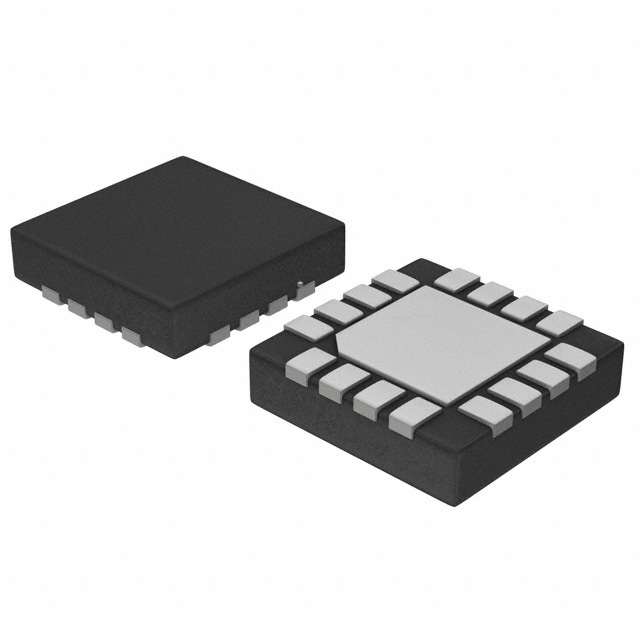

NCP5604BMTR2G
IC LED DRV RGLTR PWM 100MA 16QFNManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More
The onsemi NCP5604BMTR2G is a versatile 3-output LED driver IC. This DC-DC regulator utilizes a switched capacitor (charge pump) topology, featuring analog and PWM dimming capabilities for precise control. With an output current of 100mA per channel and a typical operating frequency of 1MHz, it is well-suited for applications in backlight illumination and camera flash systems. The internal switch design simplifies system integration. This device operates within a supply voltage range of 2.7V to 5.5V, delivering output voltages between 4.8V and 6V. Packaged in a compact 16-QFN (3x3) surface-mount configuration, the NCP5604BMTR2G is supplied on tape and reel. Its operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Voltage - Output | 4.8V ~ 6V |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight, Camera Flash |
| Current - Output / Channel | 100mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 16-QFN (3x3) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
