NCL30030B1DR2G
IC LED DRIVER OFFL 500MA 16SOICManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More

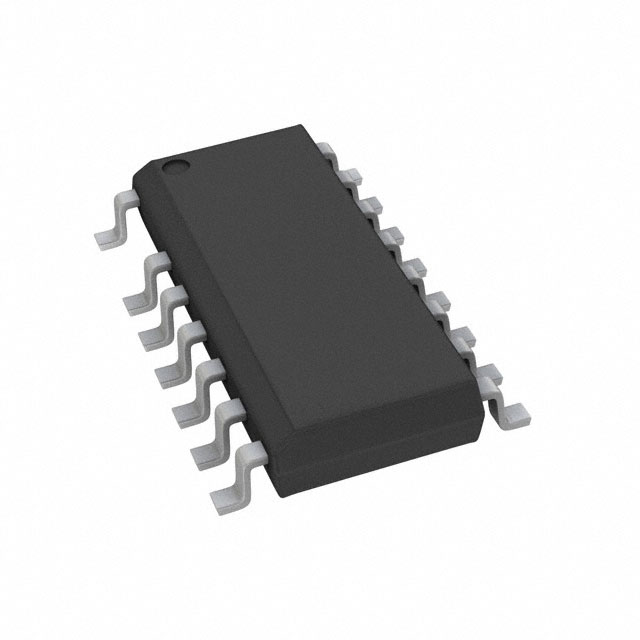

The onsemi NCL30030B1DR2G is a high-performance AC-DC offline switcher IC designed for LED driving applications. This 1-output flyback topology device features a 500mA output capability and supports dimming functionality, making it suitable for lighting and signage systems. Operating within a supply voltage range of 9V to 30V, it offers a wide input voltage tolerance. The NCL30030B1DR2G is housed in a 16-SOIC package (0.154" width) and mounts via surface mount technology. Its robust design allows for operation across an extended temperature range of -40°C to 125°C (TJ). The device is supplied on a tape and reel for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width), 15 Leads |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | - |
| Type | AC DC Offline Switcher |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | Lighting, Signage |
| Current - Output / Channel | - |
| Internal Switch(s) | No |
| Topology | Flyback |
| Supplier Device Package | 16-SOIC |
| Dimming | - |
| Voltage - Supply (Min) | 9V |
| Voltage - Supply (Max) | 30V |
