LV52204MTTBG

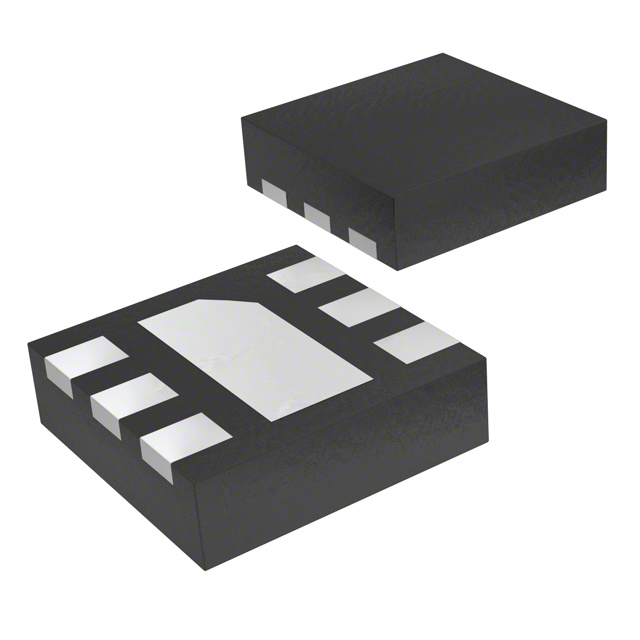

IC LED DRV RGLTR PWM 700MA 6WDFNManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More
The onsemi LV52204MTTBG is a highly efficient DC-DC boost regulator designed for LED driving applications. This component features a single output capable of delivering up to 700mA, controlled via PWM and single-wire dimming for precise brightness adjustment. Operating at a switching frequency of 600kHz, it utilizes an internal switch and is housed in a compact 6-WDFN (2x2) package suitable for surface mounting. The device supports input voltages ranging from 2.7V to 5.5V, making it versatile for various power sources. Its robust design is evident in its operational temperature range of -30°C to 85°C. This driver is commonly employed in backlight applications for displays and is available in Tape & Reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 600kHz |
| Type | DC DC Regulator |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 700mA (Switch) |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 6-WDFN (2x2) |
| Dimming | PWM, Single-Wire |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
