FL77904MX
IC LED DRV OFFL TRIAC 8SOPManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More

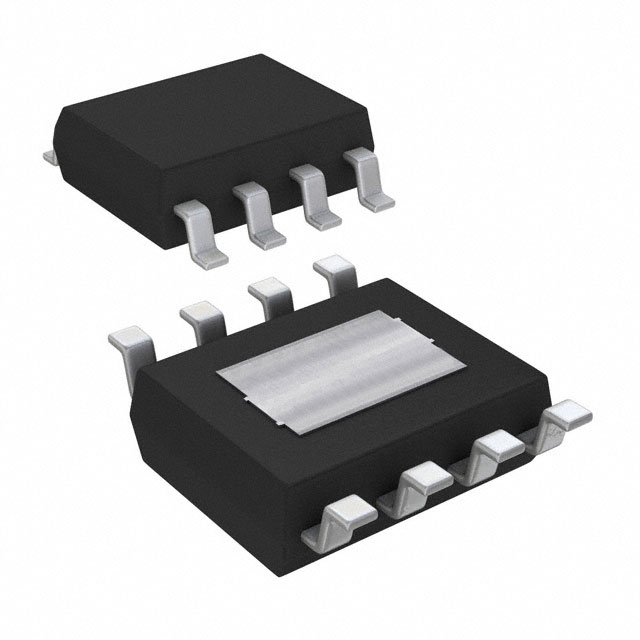

onsemi FL77904MX is a 4-output AC/DC offline switcher LED driver IC designed for high-performance lighting applications. This component supports Triac dimming and offers selectable output currents of 28.6mA, 53.6mA, 93.8mA, and 104.2mA per channel. Featuring an internal switch, it operates from a wide input voltage range of 90VAC to 305VAC. The FL77904MX is housed in an 8-SOP package with an exposed pad for enhanced thermal management, suitable for surface mount installation. Its operating temperature range is -40°C to 125°C (TJ), making it robust for demanding environments. This device is commonly utilized in general lighting and architectural lighting solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Voltage - Output | 18V |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | - |
| Type | AC DC Offline Switcher |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | Lighting |
| Current - Output / Channel | 28.6mA, 53.6mA, 93.8mA, 104.2mA |
| Internal Switch(s) | Yes |
| Topology | - |
| Supplier Device Package | 8-SOP |
| Dimming | Triac |
| Voltage - Supply (Min) | 90VAC |
| Voltage - Supply (Max) | 305VAC |
