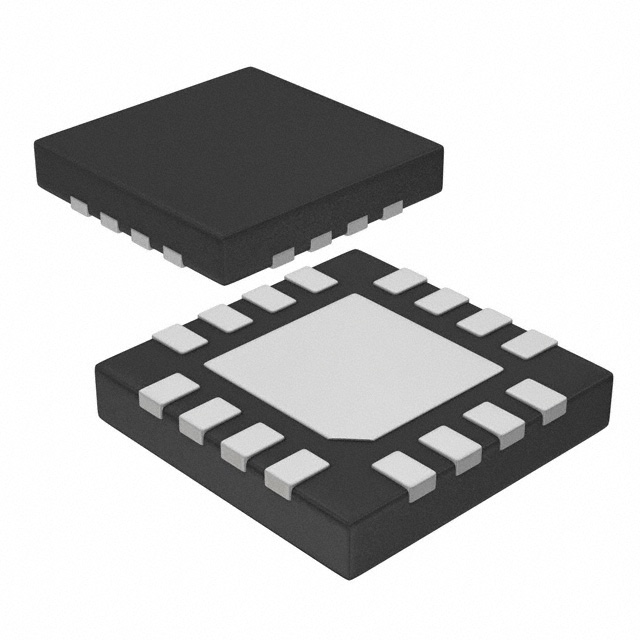

FAN5702UMP08X
IC LED DRV RGLTR I2C 30MA 16UMLPManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More
The onsemi FAN5702UMP08X is a highly integrated LED driver IC designed for efficient backlight applications. This 6-output DC-DC regulator utilizes a switched capacitor (charge pump) topology to achieve its functionality. Featuring I2C and PWM dimming capabilities, it offers precise control over LED brightness. Each of the six output channels can deliver up to 30mA. The device operates with an input voltage range of 2.7V to 5.5V and incorporates internal switches. Its 1.2MHz switching frequency contributes to compact external component selection. The FAN5702UMP08X is supplied in a 16-UMLP (3x3) package, suitable for surface mounting and delivered on tape and reel. This component is optimized for performance in demanding display backlighting systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFQFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Frequency | 1.2MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 16-UMLP (3x3) |
| Dimming | I2C, PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
