FAN5608DHMPX
IC LED DRVR RGLTR PWM 20MA 12MLPManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More

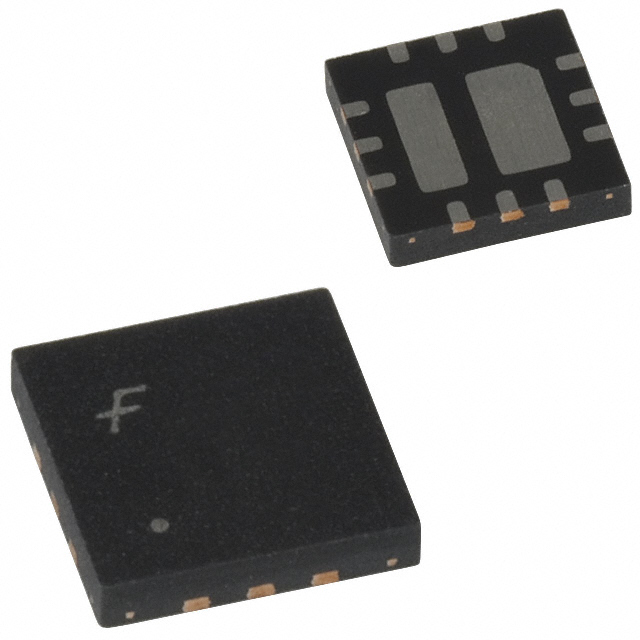

The onsemi FAN5608DHMPX is a 2-output, step-up (boost) DC-DC LED driver IC. Featuring integrated switches and PWM dimming capability, this device is designed for efficient LED backlight applications. It operates from a 2.7V to 5.5V supply and can deliver up to 18V output voltage. Each of the two channels is capable of supplying up to 20mA with a 500kHz switching frequency. The FAN5608DHMPX is housed in a 12-MLP (4x4) package, supplied on tape and reel, and suitable for surface mounting. It operates within an ambient temperature range of -40°C to 85°C. This component is commonly found in display backlighting solutions across various industries.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WQFN Exposed Pad |
| Voltage - Output | 18V |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Frequency | 500kHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 20mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 12-MLP (4x4) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
