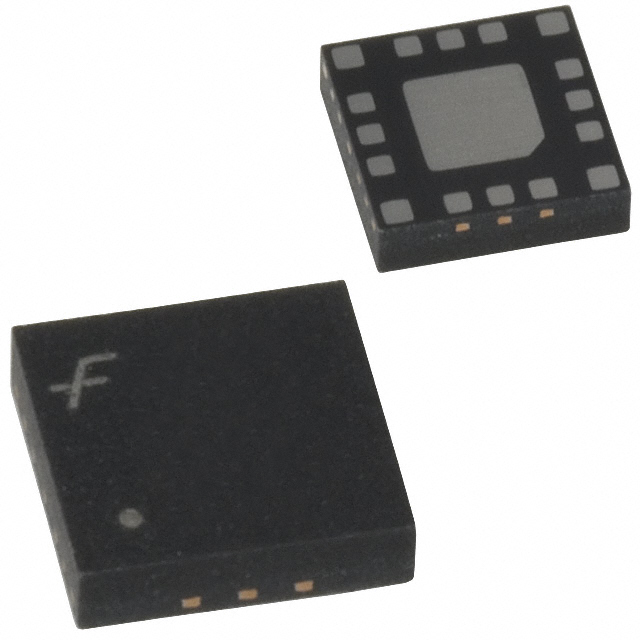

FAN5607HMPX
IC LED DRVR RGLTR PWM 30MA 16MLPManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More
The onsemi FAN5607HMPX is a 4-output DC-DC regulator featuring a switched capacitor (charge pump) topology. This LED driver IC offers analog and PWM dimming capabilities, delivering a consistent 30mA per channel. Designed for surface mount applications, it operates with a minimum supply voltage of 2.4V and a maximum of 5.5V, with an output voltage of 3.62V. The device integrates internal switches and operates at a frequency of 1MHz, making it suitable for backlight applications. Its 16-MLP (4x4) package, supplied on tape and reel, ensures efficient integration into compact designs. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Voltage - Output | 3.62V |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 16-MLP (4x4) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 2.4V |
| Voltage - Supply (Max) | 5.5V |
