CAT4106HV4-GT2
IC LED DRV RGLTR PWM 16TQFNManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More

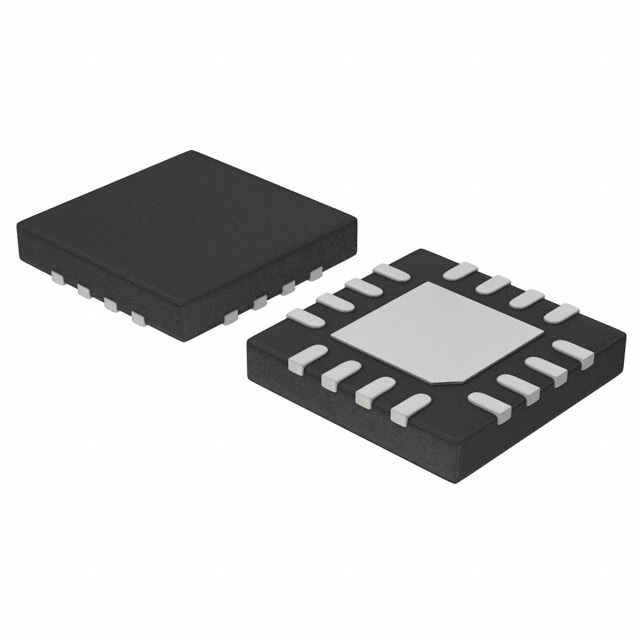

The onsemi CAT4106HV4-GT2 is a 4-output DC-DC boost LED driver. This electronic component features a 1MHz switching frequency and provides a regulated output voltage of up to 36V with a maximum output current of 175mA per channel. The device incorporates internal switches and supports PWM dimming for precise control of LED brightness. It is housed in a 16-TQFN (4x4) exposed pad package and is supplied on tape and reel for surface mounting. The operating temperature range is -40°C to 85°C. This driver is suitable for applications such as backlight and general lighting systems requiring efficient LED power management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Voltage - Output | 36V |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight, Lighting |
| Current - Output / Channel | 175mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 16-TQFN (4x4) |
| Dimming | PWM |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
