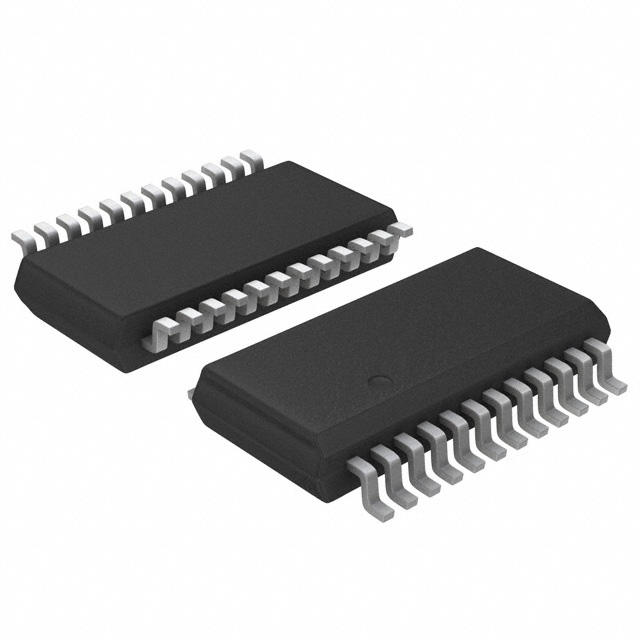

CAT4016VS-T2
IC LED DRVR LIN PWM 80MA 24QSOPManufacturer: onsemi
Categories: LED Drivers
Quality Control: Learn More
onsemi CAT4016VS-T2 is a 16-output linear LED driver featuring PWM dimming control for each channel. This device utilizes a shift register topology for efficient serial data input, allowing for cascaded operation. Each output channel is capable of sourcing up to 80mA with a maximum output voltage of 5.5V, suitable for driving LEDs in various signage applications. The internal switches simplify design, and the 25MHz frequency support enables high-resolution dimming. Operating within a temperature range of -40°C to 85°C, the CAT4016VS-T2 is provided in a 24-QSOP surface-mount package on tape and reel. The supply voltage range is 3V to 5.5V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Voltage - Output | 5.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Frequency | 25MHz |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Signage |
| Current - Output / Channel | 80mA |
| Internal Switch(s) | Yes |
| Topology | Shift Register |
| Supplier Device Package | 24-QSOP |
| Dimming | PWM |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
