MAN8640
DISP 7SEG 0.8"" SGL ORG-RED 18DIPManufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More

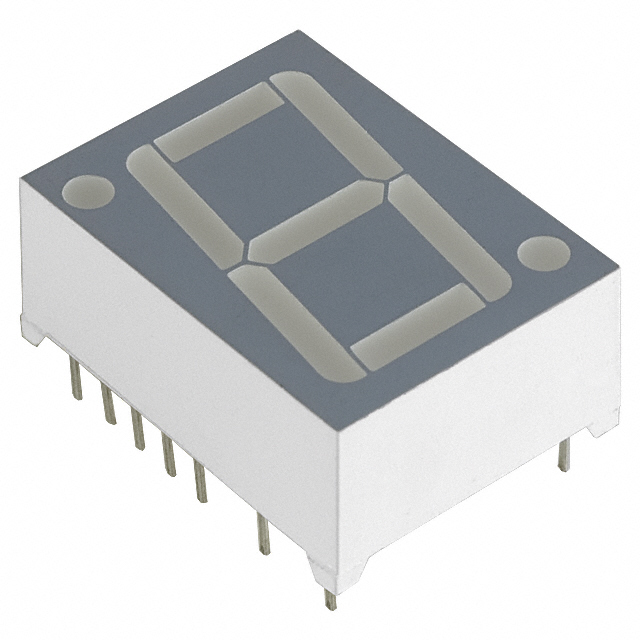

onsemi MAN8640 is a single-digit, 0.8-inch orange-red 7-segment display module. This component features a common cathode configuration and operates with a typical forward voltage of 2.5V and a test current of 20mA, achieving a millicandela rating of 2.2mcd. The display's dimensions are 0.985 inches in height, 0.735 inches in width, and 0.415 inches in depth. It is housed in an 18-DIP (0.600", 15.24mm) package with 14 leads. The peak wavelength is 630nm, and the maximum power dissipation is 600mW. This display is suitable for applications in industrial automation, instrumentation, and consumer electronics requiring clear numerical or character representation.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm), 14 Leads |
| Color | Orange-Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.985"" H x 0.735"" W x 0.415"" D (25.02mm x 18.67mm x 10.54mm) |
| Number of Characters | 1 |
| Millicandela Rating | 2.2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 2.5V (Max) |
| Current - Test | 20mA |
| Wavelength - Peak | 630nm |
| Power Dissipation (Max) | 600mW |
