MAN74A

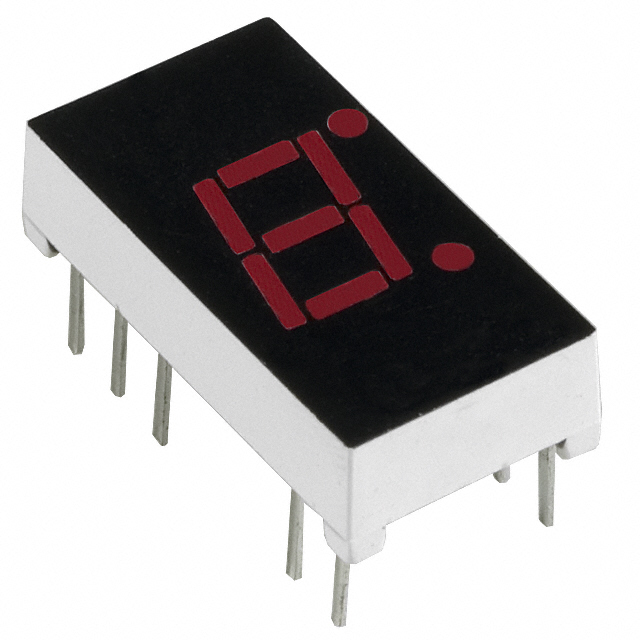

DISPLAY 7-SEG 0.3"" SGL RED 14DIPManufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More
onsemi MAN74A is a single-digit, 7-segment display module featuring a bright red LED character. This component utilizes a common cathode configuration and offers a digit height of 0.30 inches (7.62mm). Operating at a typical forward voltage of 2.2V, it requires 20mA test current with a millicandela rating of 0.35mcd. The display's dimensions are 0.738 inches high by 0.386 inches wide by 0.200 inches deep. Packaged in a 14-DIP with a 0.300-inch lead span and 10 leads, the MAN74A is suitable for applications in industrial control, instrumentation, and consumer electronics where clear numeric display is essential. Maximum power dissipation is rated at 480mW.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm), 10 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.738"" H x 0.386"" W x 0.200"" D (18.75mm x 9.80mm x 5.08mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.35mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.30"" (7.62mm) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 480mW |
