MAN6960
LED 7-SEG SGL CA RED RHDP .56Manufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More

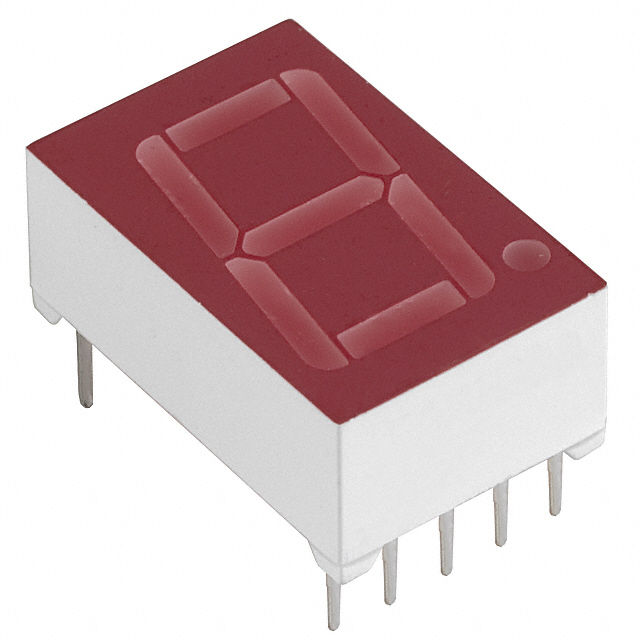

The onsemi MAN6960 is a single-digit, 7-segment numeric display module featuring a red LED. This component utilizes a common anode configuration and offers a digit size of 0.56 inches (14.22mm). Key electrical specifications include a typical forward voltage of 2.5V (max) and a forward current of 20mA for testing. The display exhibits a peak wavelength of 635nm and a millicandela rating of 2.2mcd. Packaged in a 10-DIP with a 0.600" (15.24mm) lead spacing, its dimensions are 0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm). The maximum power dissipation is 600mW. This display is suitable for various industrial and consumer electronics applications requiring clear numeric indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.480"" W x 0.315"" D (19.05mm x 12.20mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 2.2mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.5V (Max) |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 600mW |
