MAN6780
DISPLAY 7SEG 0.56"" SGL RED 10DIPManufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More

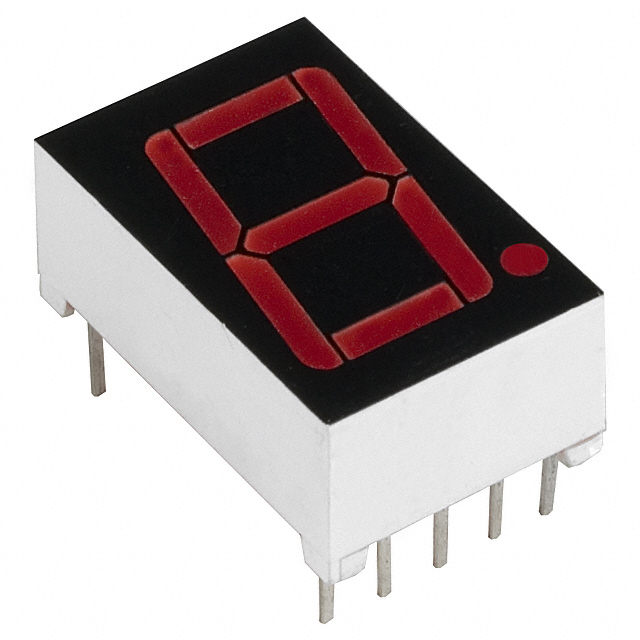

The onsemi MAN6780 is a single-digit, 7-segment numeric display module featuring a bright red LED output. This component utilizes a common cathode configuration and offers a digit height of 0.56 inches (14.22mm). Designed for standard through-hole mounting, it comes in a 10-DIP package with a 0.600-inch (15.24mm) pin pitch. The display operates with a typical forward voltage of 2V (Max) and a test current of 20mA, achieving a millicandela rating of 0.42mcd. Its dimensions are 0.750 inches (19.05mm) in height, 0.480 inches (12.20mm) in width, and 0.315 inches (8.00mm) in depth. The peak wavelength for the red illumination is 650nm. This display module is suitable for applications in industrial control, instrumentation, and general-purpose numeric indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.480"" W x 0.315"" D (19.05mm x 12.20mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.42mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2V (Max) |
| Current - Test | 20mA |
| Wavelength - Peak | 650nm |
| Power Dissipation (Max) | 480mW |
