MAN6680

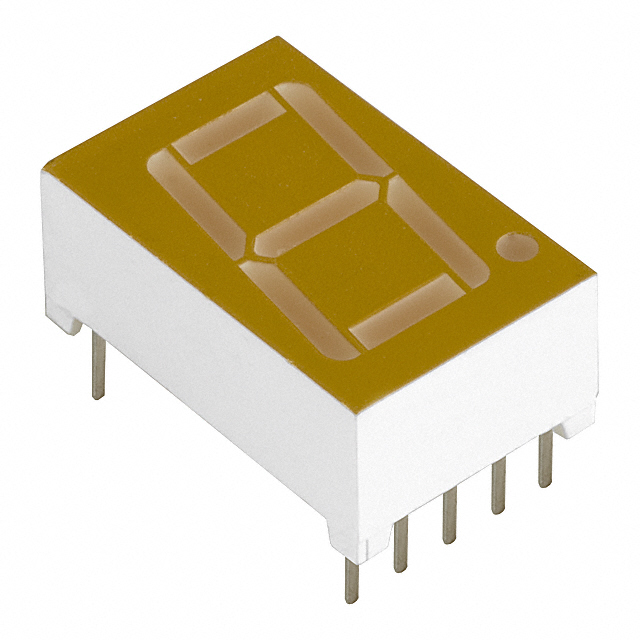

DISPLAY 7SEG 0.56"" SGL ORG 10DIPManufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More
onsemi MAN6680 is a single-digit, 7-segment numeric display module featuring a bright orange LED character. This component utilizes a common cathode configuration and operates with a typical forward voltage of 2.5V, drawing 20mA of current for optimal illumination, rated at 2.2mcd. The display boasts a digit height of 0.56 inches (14.22mm). Encased in a 10-DIP (0.600", 15.24mm) package, its dimensions are 0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm). The peak wavelength of the emitted light is 630nm. This display module finds application in various industrial control systems, instrumentation, and consumer electronics where clear numerical indication is required. The power dissipation is rated at a maximum of 600mW.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Orange |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.480"" W x 0.315"" D (19.05mm x 12.20mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 2.2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.5V (Max) |
| Current - Test | 20mA |
| Wavelength - Peak | 630nm |
| Power Dissipation (Max) | 600mW |
