MAN6640
LED 7-SEG DUAL CC ORN RHDP .56Manufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More

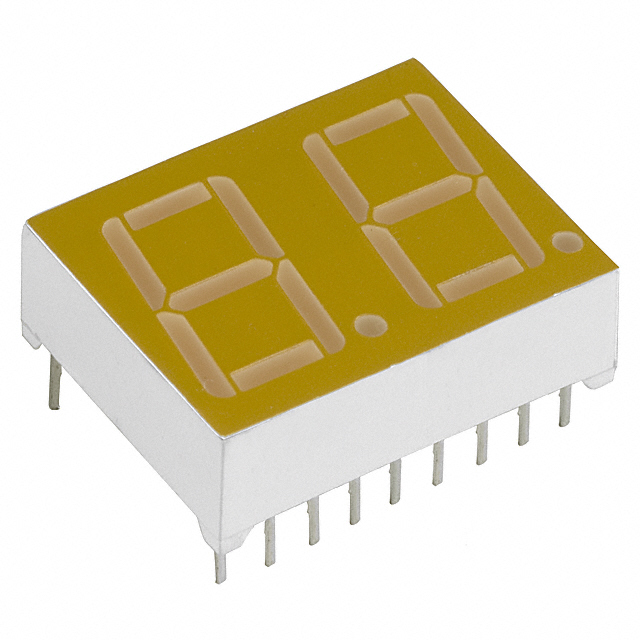

The onsemi MAN6640 is a dual-digit, 7-segment numeric display module featuring a high-efficiency orange LED character. With a common cathode configuration and a digit height of 0.56 inches (14.22mm), this component is designed for applications requiring clear, bright numeric readouts. Each segment draws a typical forward current of 20mA, with a maximum forward voltage of 2.5V. The display’s peak wavelength is 630nm, contributing to its distinct orange hue, and it achieves a millicandela rating of 2.2mcd. Housed in an 18-DIP package with a 0.600-inch (15.24mm) pin spacing, the module measures 0.750 inches (19.05mm) in height, 0.985 inches (25.02mm) in width, and 0.315 inches (8.00mm) in depth. This display is suitable for use in industrial control panels, instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Orange |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.985"" W x 0.315"" D (19.05mm x 25.02mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 2.2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.5V (Max) |
| Current - Test | 20mA |
| Wavelength - Peak | 630nm |
| Power Dissipation (Max) | 1.2W |
