MAN6460
DISPLAY 7SEG 0.56"" SGL GRN 10DIPManufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More

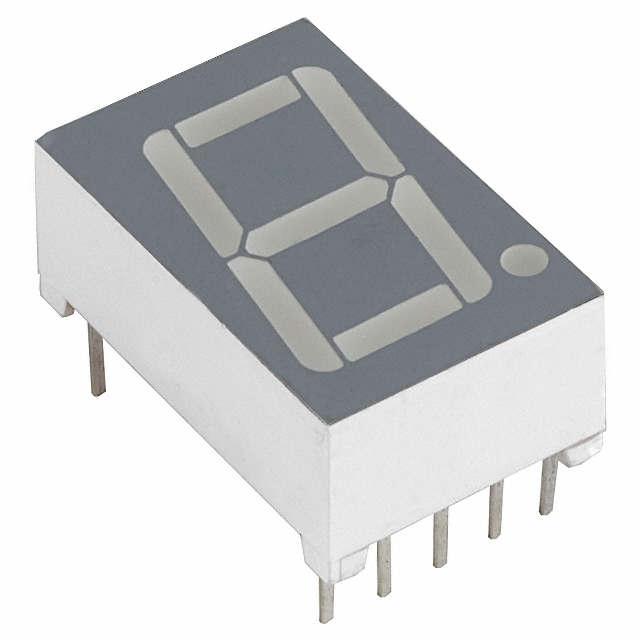

The onsemi MAN6460 is a single-digit, 7-segment alphanumeric display module featuring a green LED character. This component utilizes a common anode configuration and offers a digit height of 0.56 inches (14.22mm). With a typical forward voltage of 2.1V and a test current of 20mA, it achieves a millicandela rating of 2.2mcd and a peak wavelength of 565nm. The display module is housed in a 10-DIP package with a standard 0.600-inch (15.24mm) pin pitch, and its overall dimensions are 0.750 inches high by 0.480 inches wide by 0.315 inches deep (19.05mm x 12.20mm x 8.00mm). Maximum power dissipation is rated at 600mW. This display is suitable for instrumentation, industrial control, and point-of-sale terminal applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.480"" W x 0.315"" D (19.05mm x 12.20mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 2.2mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 600mW |
