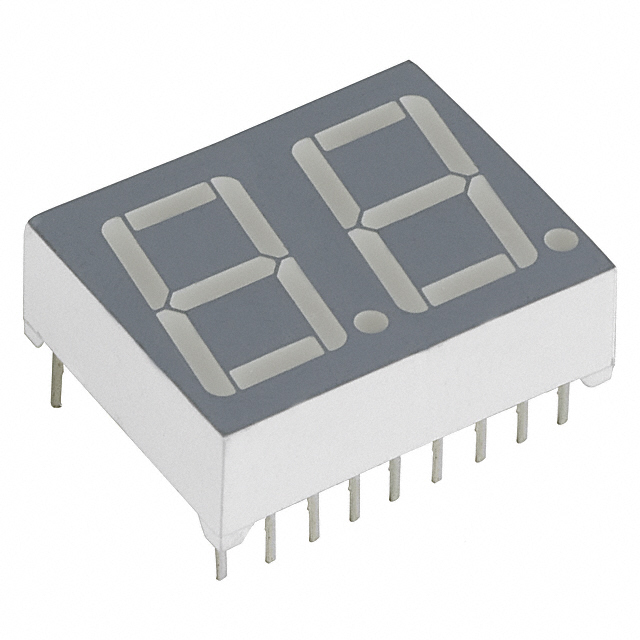

MAN6440
LED 7-SEG DUAL CC .56"" GREENManufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More
onsemi MAN6440 is a dual-digit, 0.56-inch, green 7-segment display module utilizing a common cathode configuration. Each character operates at a typical forward voltage of 2.1V and a test current of 20mA, producing a luminous intensity of 2.2mcd. The display dimensions are 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm). This component is housed in an 18-DIP package with a 0.600" (15.24mm) centerline. The MAN6440 is suitable for applications in industrial control, instrumentation, and informational displays where clear numerical readouts are essential. Peak wavelength for the green emission is 565nm, with a maximum power dissipation of 600mW.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.985"" W x 0.315"" D (19.05mm x 25.02mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 2.2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 600mW |
