MAN4940A
DISPLAY 7-SEG 0.4"" SGL RED 14DIPManufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More

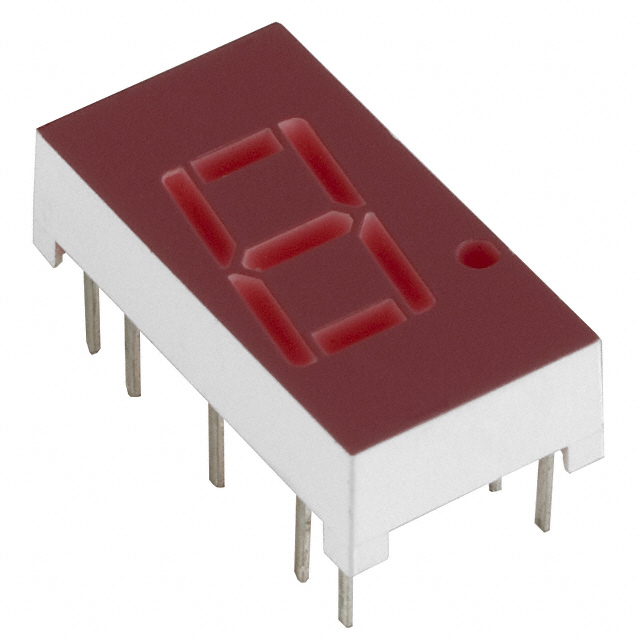

onsemi MAN4940A is a single-digit, 0.4-inch red 7-segment display module. This 14-DIP package component features a common cathode configuration and operates with a typical forward voltage of 2.2V at 20mA test current. The display offers a peak wavelength of 635nm and a luminous intensity of 1.9mcd. Its dimensions are 0.738 inches high, 0.386 inches wide, and 0.200 inches deep. The 14-DIP package is designed for a 0.300-inch (7.62mm) lead spacing and utilizes 11 leads. This component is suitable for applications in instrumentation, industrial control systems, and general electronic displays.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm), 11 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.738"" H x 0.386"" W x 0.200"" D (18.75mm x 9.80mm x 5.08mm) |
| Number of Characters | 1 |
| Millicandela Rating | 1.9mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 600mW |
