MAN4610A

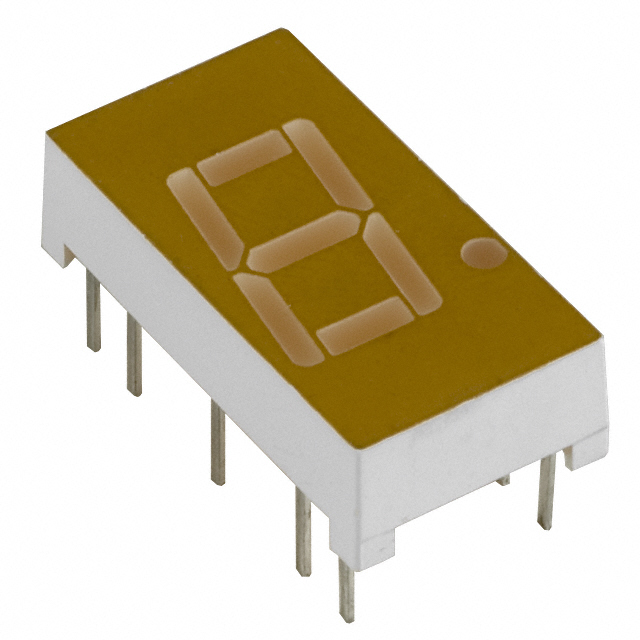

DISPLAY 7-SEG 0.4"" SGL ORG 14DIPManufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More
onsemi MAN4610A is a single-character, 7-segment alphanumeric display module featuring a bright orange LED output. This component utilizes a common anode configuration and is housed in a 14-DIP package with 10 leads, designed for through-hole mounting. The digit size measures 0.40 inches (10.16mm) with a typical forward voltage of 2.2V at a test current of 20mA, resulting in a millicandela rating of 1.8mcd. The module's dimensions are 0.738 inches high by 0.386 inches wide by 0.200 inches deep. Applications for this display are found in industrial control systems, medical instrumentation, and general-purpose digital readouts where clear numeric indication is essential. The peak wavelength of the emission is 630nm.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm), 10 Leads |
| Color | Orange |
| Display Type | 7-Segment |
| Size / Dimension | 0.738"" H x 0.386"" W x 0.200"" D (18.75mm x 9.80mm x 5.08mm) |
| Number of Characters | 1 |
| Millicandela Rating | 1.8mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Wavelength - Peak | 630nm |
| Power Dissipation (Max) | 600mW |
