MAN4440A
DISPLAY 7SEG 0.4"" SGL GRN 14DIPManufacturer: onsemi
Categories: LED Character and Numeric
Quality Control: Learn More

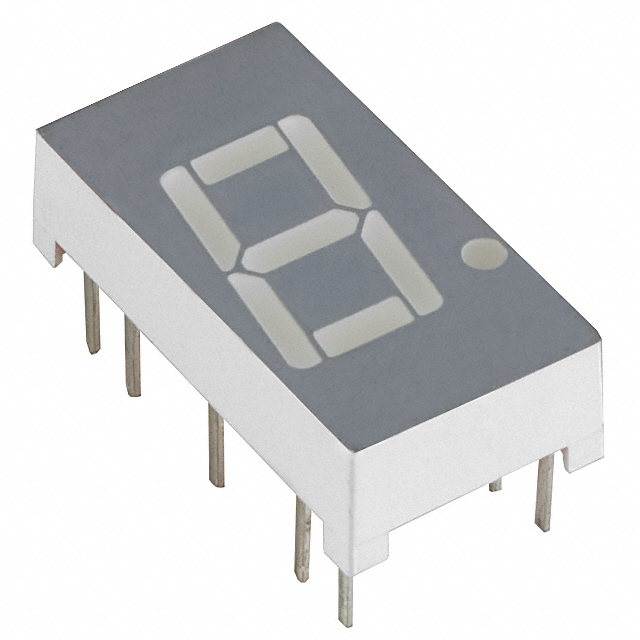

The onsemi MAN4440A is a single-digit, 7-segment display module featuring a bright green LED character with a nominal digit height of 0.40 inches (10.16mm). This component utilizes a common cathode configuration and operates with a typical forward voltage of 2.2V at a test current of 20mA. The display has a millicandela rating of 3.2mcd and a peak wavelength of 562nm. Packaged in a 14-DIP with 11 leads and dimensions of 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm), the MAN4440A is suitable for various industrial and consumer electronics applications requiring clear numeric indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm), 11 Leads |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.738"" H x 0.386"" W x 0.200"" D (18.75mm x 9.80mm x 5.08mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3.2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Wavelength - Peak | 562nm |
| Power Dissipation (Max) | 600mW |
