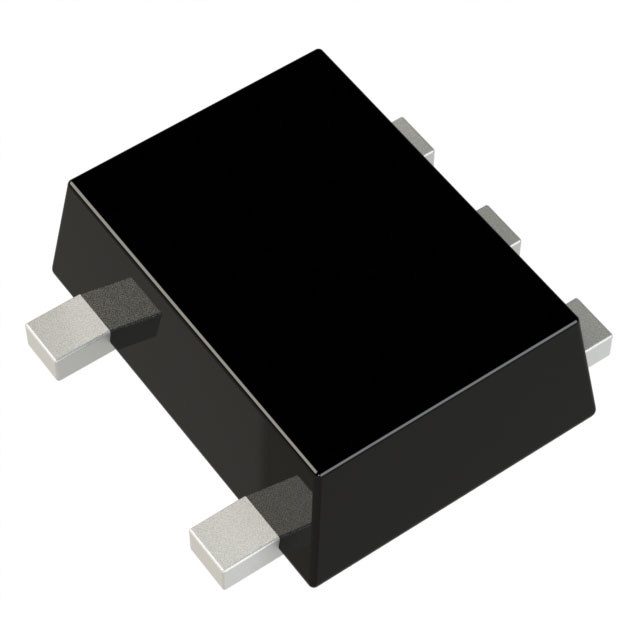

NSVJ5908DSG5T1G
JFET 2N-CH 15V 50MA SC88AFL/MCPHManufacturer: onsemi
Categories: JFETs
Quality Control: Learn More
JFET 2 N-Channel (Dual) 15 V 50 mA 300 mW Surface Mount SC-88AFL/MCPH5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Type | 2 N-Channel (Dual) |
| Input Capacitance (Ciss) (Max) @ Vds | 10.5pF @ 5V (Typ) |
| Voltage - Breakdown (V(BR)GSS) | 15 V |
| Current Drain (Id) - Max | 50 mA |
| Supplier Device Package | SC-88AFL/MCPH5 |
| Grade | Automotive |
| Drain to Source Voltage (Vdss) | 15 V |
| Power - Max | 300 mW |
| Voltage - Cutoff (VGS off) @ Id | 300 mV @ 100 µA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 10 mA @ 5 V |
| Qualification | AEC-Q101 |
