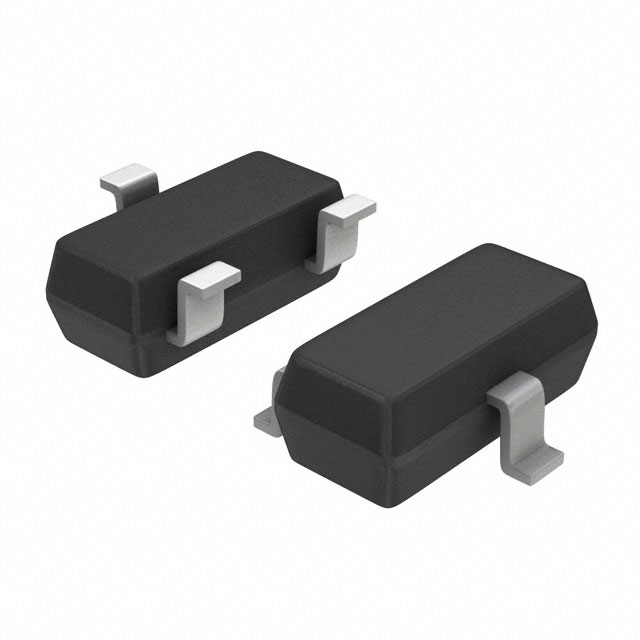

NSVJ3557SA3T1G
JFET N-CH 15V 50MA SC59-3/CP3Manufacturer: onsemi
Categories: JFETs
Quality Control: Learn More
JFET N-Channel 15 V 50 mA 200 mW Surface Mount SC-59-3/CP3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 10pF @ 5V |
| Voltage - Breakdown (V(BR)GSS) | 15 V |
| Current Drain (Id) - Max | 50 mA |
| Supplier Device Package | SC-59-3/CP3 |
| Grade | Automotive |
| Drain to Source Voltage (Vdss) | 15 V |
| Power - Max | 200 mW |
| Voltage - Cutoff (VGS off) @ Id | 300 mV @ 100 µA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 10 mA @ 5 V |
| Qualification | AEC-Q101 |
