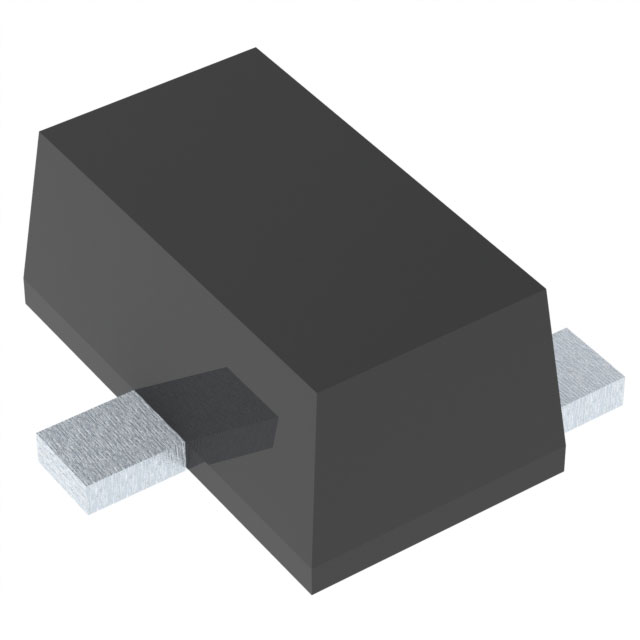

The onsemi FJZ594JCTF is an N-Channel JFET designed for high-frequency applications. This component features a drain current (Idss) of 150 µA at 5V (Vgs=0) and a maximum drain current (Id) of 1 mA. The breakdown voltage (V(BR)GSS) is rated at 20 V, with a cutoff voltage (VGS off) of 600 mV @ 1 µA. With a maximum power dissipation of 100 mW and an operating temperature up to 150°C, this JFET is suitable for demanding environments. Its input capacitance (Ciss) is a maximum of 3.5 pF at 5V. Supplied in a SOT-623F surface mount package, the FJZ594JCTF is delivered on tape and reel (TR). This device finds utility in RF amplification and switching circuits across various electronics industries.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-623F |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 3.5pF @ 5V |
| Voltage - Breakdown (V(BR)GSS) | 20 V |
| Current Drain (Id) - Max | 1 mA |
| Supplier Device Package | SOT-623F |
| Power - Max | 100 mW |
| Voltage - Cutoff (VGS off) @ Id | 600 mV @ 1 µA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 150 µA @ 5 V |
