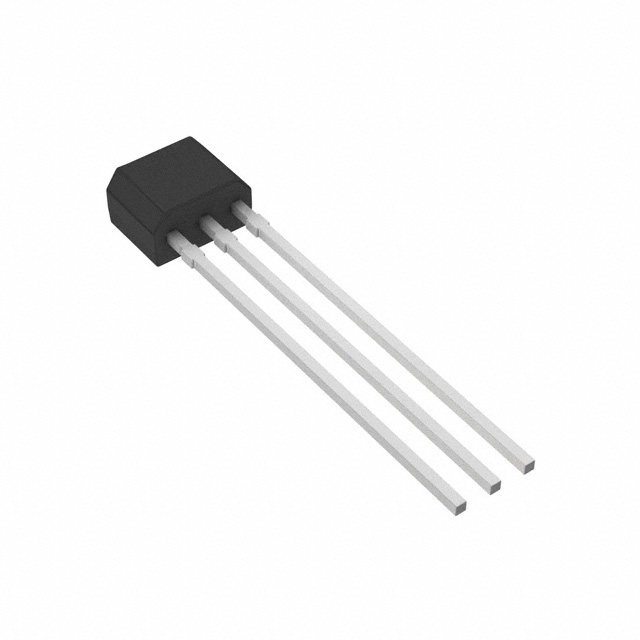

onsemi 2SK715U is an N-Channel JFET designed for general-purpose switching and amplification applications. This component features a Drain-Source Voltage (Vdss) of 15V and a continuous Drain Current (Id) of up to 50mA. The typical Idss is 7.3mA at 5V with Vgs=0. With a maximum power dissipation of 300mW, the 2SK715U operates efficiently across a temperature range of -55°C to 125°C. The cutoff voltage (VGS off) is specified at 600mV @ 100µA. This Through Hole device is supplied in a 3-SPA package, also known as SC-72, suitable for various industrial and consumer electronics systems, including audio preamplifiers and RF circuits.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-72 |
| Mounting Type | Through Hole |
| Operating Temperature | 125°C (TJ) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 10pF @ 5V |
| Current Drain (Id) - Max | 50 mA |
| Supplier Device Package | 3-SPA |
| Drain to Source Voltage (Vdss) | 15 V |
| Power - Max | 300 mW |
| Voltage - Cutoff (VGS off) @ Id | 600 mV @ 100 µA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 7.3 mA @ 5 V |
