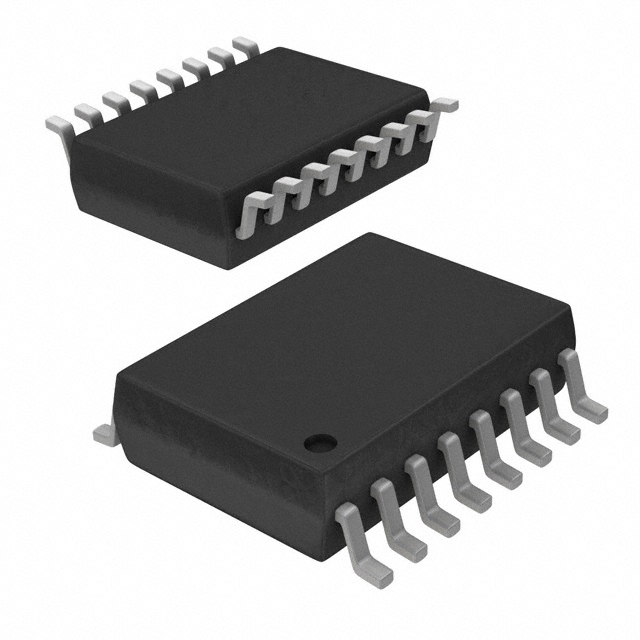

FOD8332V
OPTOISO 4.243KV 1CH GT DVR 16SOManufacturer: onsemi
Categories: Isolators - Gate Drivers
Quality Control: Learn More
3A Gate Driver Optical Coupling 4243Vrms 1 Channel 16-SO
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - Peak Output | 3A |
| Technology | Optical Coupling |
| Current - Output High, Low | 2.5A, 2.5A |
| Voltage - Isolation | 4243Vrms |
| Approval Agency | IEC/EN/DIN, UL |
| Supplier Device Package | 16-SO |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns |
| Pulse Width Distortion (Max) | 100ns |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 3V ~ 15V |
