MC33079DG
IC OPAMP GP 4 CIRCUIT 14SOICManufacturer: onsemi
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
onsemi MC33079DG is a quad, general-purpose operational amplifier designed for demanding applications. This device features a 16 MHz gain bandwidth product and a 7 V/µs slew rate, making it suitable for signal processing in industrial automation, automotive systems, and medical equipment. With a low input bias current of 300 nA and an input offset voltage of 150 µV, it provides precise amplification. The MC33079DG operates from a 10 V to 36 V supply voltage span, drawing a quiescent current of 8.4 mA per channel and delivering up to 37 mA output current. Packaged in a 14-SOIC (0.154" width) surface-mount format, it operates reliably across a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

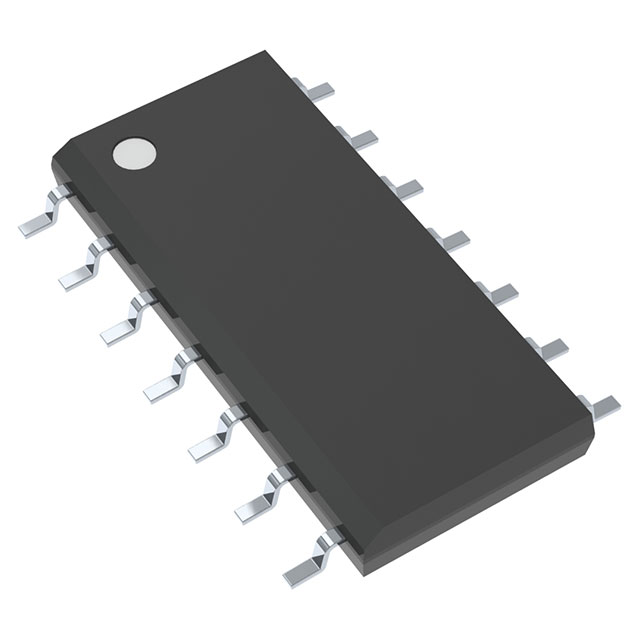

| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 8.4mA |
| Slew Rate | 7V/µs |
| Gain Bandwidth Product | 16 MHz |
| Current - Input Bias | 300 nA |
| Voltage - Input Offset | 150 µV |
| Supplier Device Package | 14-SOIC |
| Number of Circuits | 4 |
| Current - Output / Channel | 37 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
