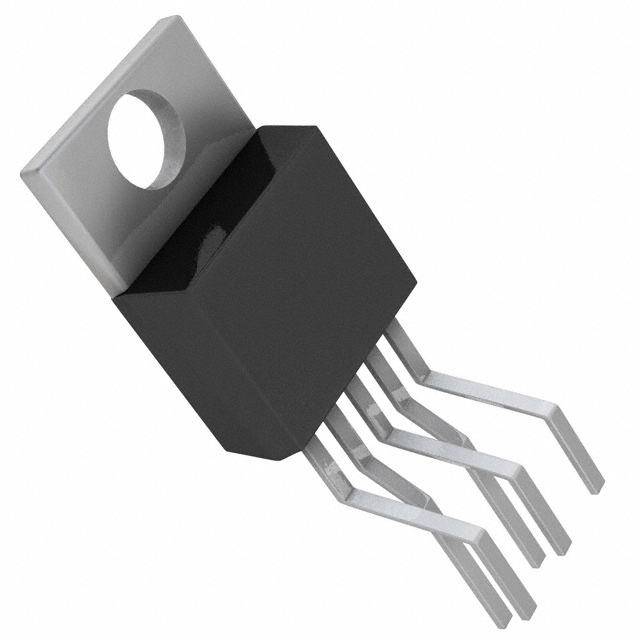

LA6500-FA-E
IC POWER 1 CIRCUIT TO220-5HManufacturer: onsemi
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The onsemi LA6500-FA-E is a single-circuit power amplifier packaged in a TO-220-5H configuration. This component offers a high output current of 1 A per channel and a supply current of 6 mA. Featuring a slew rate of 0.15V/µs and an input offset voltage of 2 mV, it is well-suited for demanding power amplification applications. The device operates within a temperature range of -20°C to 75°C and requires through-hole mounting. With a maximum supply voltage span of 30V, the LA6500-FA-E finds utility in industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 Formed Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Power |
| Operating Temperature | -20°C ~ 75°C |
| Current - Supply | 6mA |
| Slew Rate | 0.15V/µs |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | TO-220-5H |
| Number of Circuits | 1 |
| Current - Output / Channel | 1 A |
| Voltage - Supply Span (Min) | 30 V |
| Voltage - Supply Span (Max) | 30 V |
