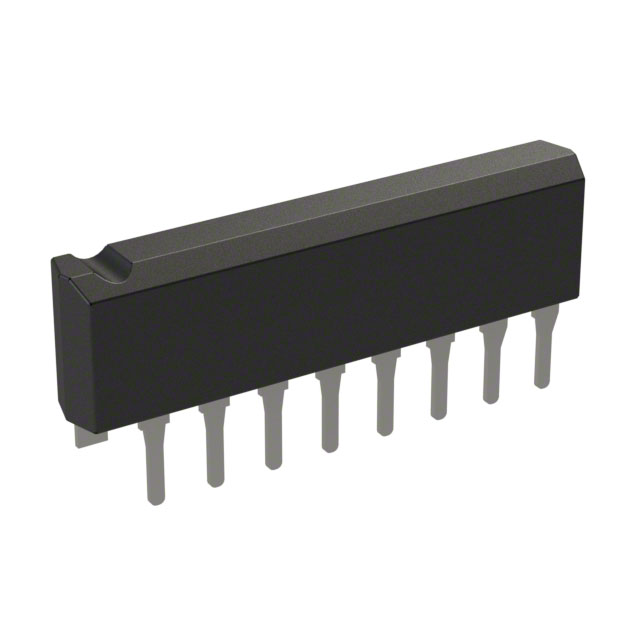

KA4558STU
IC OPAMP GP 2 CIRCUIT 9SIPManufacturer: onsemi
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The onsemi KA4558STU is a general-purpose operational amplifier featuring two independent amplifier circuits within a 9-SIP package. This component is designed for through-hole mounting and operates with a supply voltage span up to 44V. Key specifications include a typical input bias current of 30 nA and a supply current of 3.5mA per channel. The device offers a slew rate of 1.2V/µs and an input offset voltage of 2 mV. Operating within a temperature range of 0°C to 70°C, the KA4558STU finds application in various instrumentation and signal processing systems. It is supplied in tube packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-SSIP Module, 9 Leads, Formed Leads |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 3.5mA (x2 Channels) |
| Slew Rate | 1.2V/µs |
| Current - Input Bias | 30 nA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | 9-SIP |
| Number of Circuits | 2 |
| Voltage - Supply Span (Min) | 44 V |
| Voltage - Supply Span (Max) | 44 V |
