NOIV2SE1300A-QDC
IC IMAGE SENSOR 1.3MP 48LLCManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More

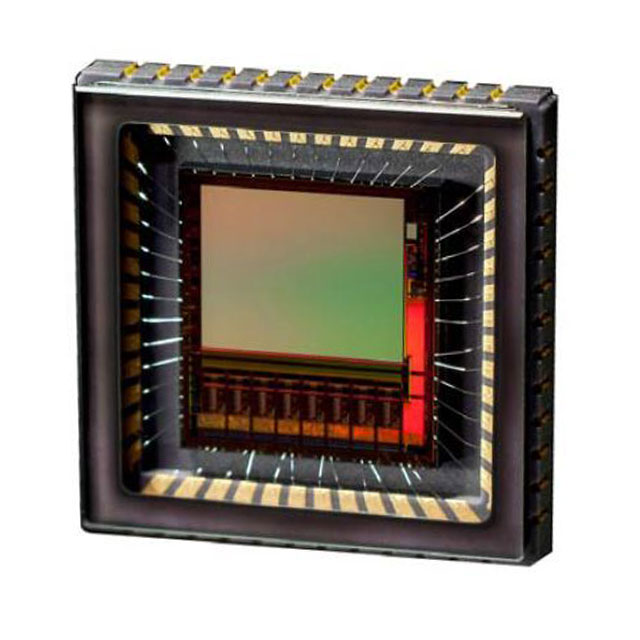

The onsemi NOIV2SE1300A-QDC is a high-performance CMOS image sensor featuring a 1280H x 1024V active pixel array. This component utilizes 4.8µm x 4.8µm pixels, enabling excellent light sensitivity and detail capture. With a maximum frame rate of 150 frames per second, it is well-suited for demanding imaging applications. The sensor operates across a wide temperature range of -40°C to 85°C (TJ) and supports dual supply voltages of 1.8V and 3.3V. Packaged in a 168-CPGA (168-PGA), the NOIV2SE1300A-QDC is commonly employed in industrial automation, machine vision, and security surveillance systems where precise and rapid image acquisition is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 168-CPGA |
| Type | CMOS |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Voltage - Supply | 1.8V, 3.3V |
| Pixel Size | 4.8µm x 4.8µm |
| Active Pixel Array | 1280H x 1024V |
| Supplier Device Package | 168-PGA |
| Frames per Second | 150.0 |
