NOIP1SN025KA-GTI
IC IMAGE SENS 25MP CMOS 355CPGAManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More

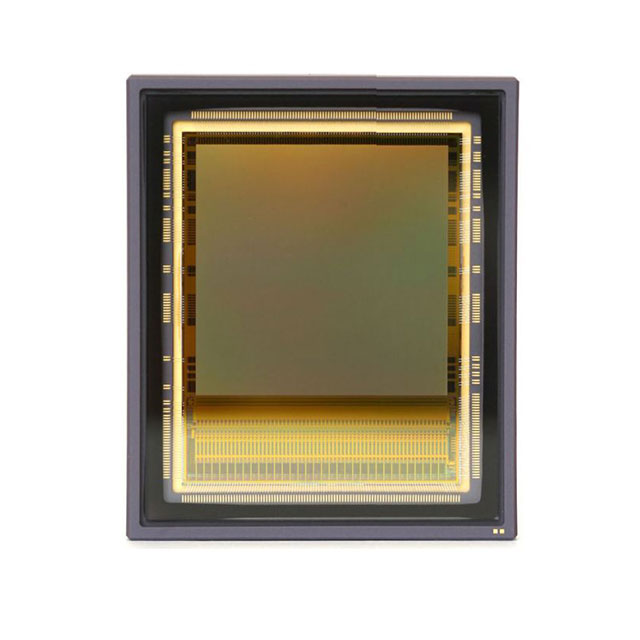

The onsemi PYTHON NOIP1SN025KA-GTI is a 25-megapixel CMOS image sensor featuring a 5120H x 5120V active pixel array with a 4.5µm x 4.5µm pixel size. This sensor operates with a voltage range of 1.7V to 1.9V and 3.2V to 3.4V, supporting frame rates up to 80 frames per second. It is housed in a 355-µPGA package with a window and operates within an industrial temperature range of -40°C to 85°C. Applications for this high-resolution sensor include industrial imaging, machine vision, and advanced surveillance systems.
Additional Information
Series: PYTHONRoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 355-BSPGA, Window |
| Type | CMOS |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Voltage - Supply | 1.7V ~ 1.9V, 3.2V ~ 3.4V |
| Pixel Size | 4.5µm x 4.5µm |
| Active Pixel Array | 5120H x 5120V |
| Supplier Device Package | 355-µPGA |
| Frames per Second | 80.0 |
