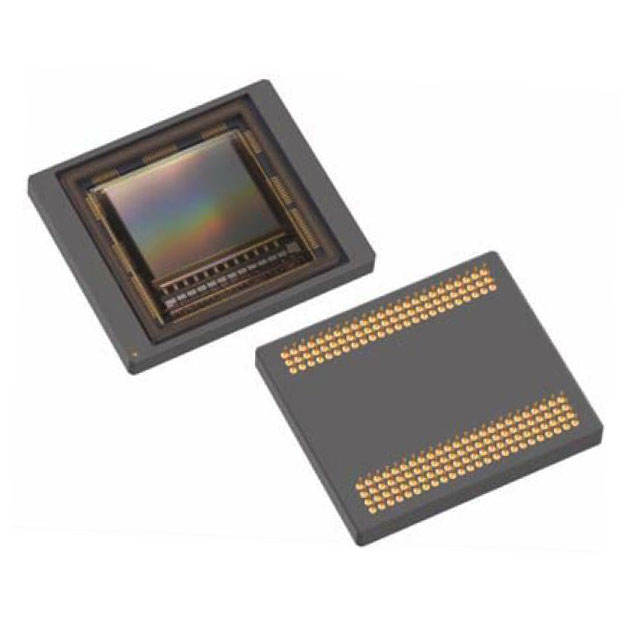

NOIL2SC1300A-GDC
IC IMAGE SENSOR LUPA1300 168PGAManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More
The onsemi NOIL2SC1300A-GDC is a high-performance CMOS image sensor featuring a 1280H x 1024V active pixel array. Its advanced pixel architecture utilizes a 14µm x 5.2µm pixel size, enabling excellent light sensitivity and detail capture. This component is designed for demanding applications requiring precise visual data acquisition, commonly found in industrial automation, machine vision, and advanced imaging systems. The NOIL2SC1300A-GDC operates with dual supply voltages of 2.5V and 3.3V and supports frame rates up to 30 frames per second. It is housed in a 168-PGA package and operates within a temperature range of -50°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 168-CPGA |
| Type | CMOS |
| Operating Temperature | -50°C ~ 85°C (TJ) |
| Voltage - Supply | 2.5V, 3.3V |
| Pixel Size | 14µm x 5.2µm |
| Active Pixel Array | 1280H x 1024V |
| Supplier Device Package | 168-PGA |
| Frames per Second | 30.0 |
