NOIL1SM4000A-GDC
IC IMAGE SENSOR LUPA4000 127PGAManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More

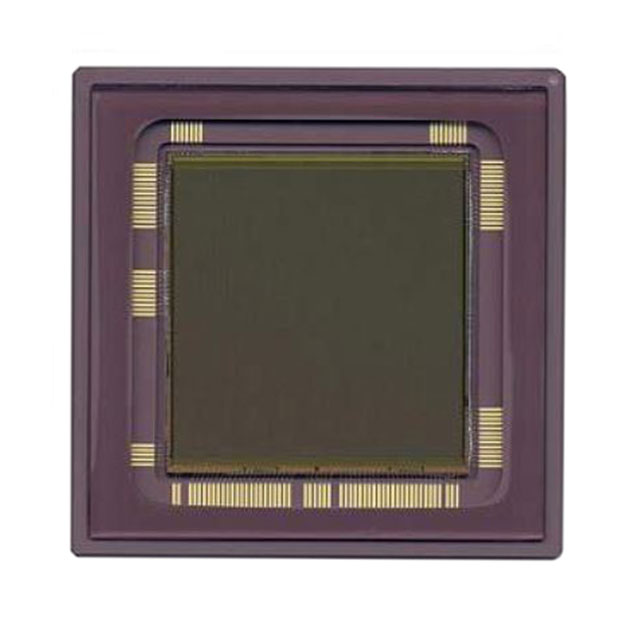

The onsemi NOIL1SM4000A-GDC is a high-performance CMOS image sensor featuring a 2048H x 2048V active pixel array. Each pixel measures 12µm x 12µm, enabling detailed image capture. This device supports frame rates up to 15 frames per second. The sensor operates across a temperature range of 0°C to 60°C and requires supply voltages of 2.5V and 3.3V. It is housed in a 127-PGA (42x42) package. Applications for this component include industrial automation, machine vision, and medical imaging systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 127-BCPGA |
| Type | CMOS |
| Operating Temperature | 0°C ~ 60°C |
| Voltage - Supply | 2.5V, 3.3V |
| Pixel Size | 12µm x 12µm |
| Active Pixel Array | 2048H x 2048V |
| Supplier Device Package | 127-PGA (42x42) |
| Frames per Second | 15.0 |
