NOII5SC1300A-QDC
SENSOR IMAGE COLOR CMOS 84-LCCManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More

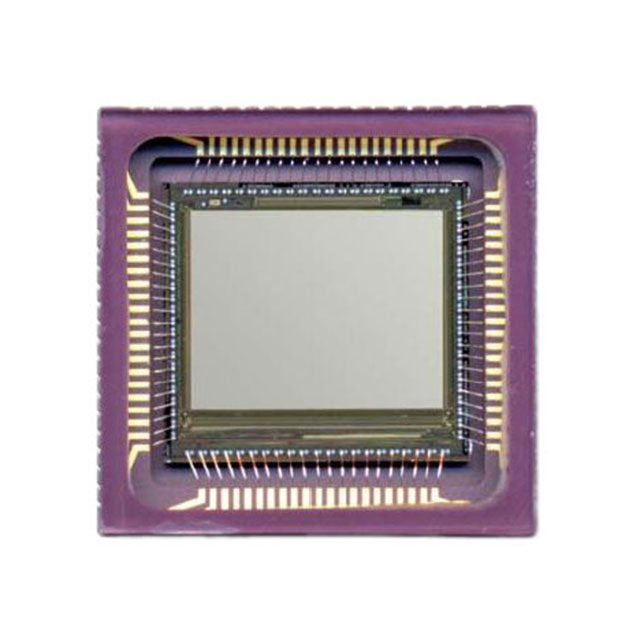

The onsemi NOII5SC1300A-QDC is a high-performance CMOS image sensor featuring a 1280H x 1024V active pixel array with a pixel size of 6.7µm x 6.7µm. Engineered for demanding applications, this sensor supports frame rates up to 27.0 fps. It operates within a supply voltage range of 3V to 4.5V and has an operating temperature range of -30°C to 65°C (TJ). The component is housed in an 84-LCC (18x18) package, suitable for industrial automation, machine vision, and security surveillance systems. This device is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 84-LCC |
| Type | CMOS |
| Operating Temperature | -30°C ~ 65°C (TJ) |
| Voltage - Supply | 3V ~ 4.5V |
| Pixel Size | 6.7µm x 6.7µm |
| Active Pixel Array | 1280H x 1024V |
| Supplier Device Package | 84-LCC (18x18) |
| Frames per Second | 27.0 |
Request a Quote
