NOII4SM1300A-QDC
SENSOR IMAGE MONO CMOS 84-LCCManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More

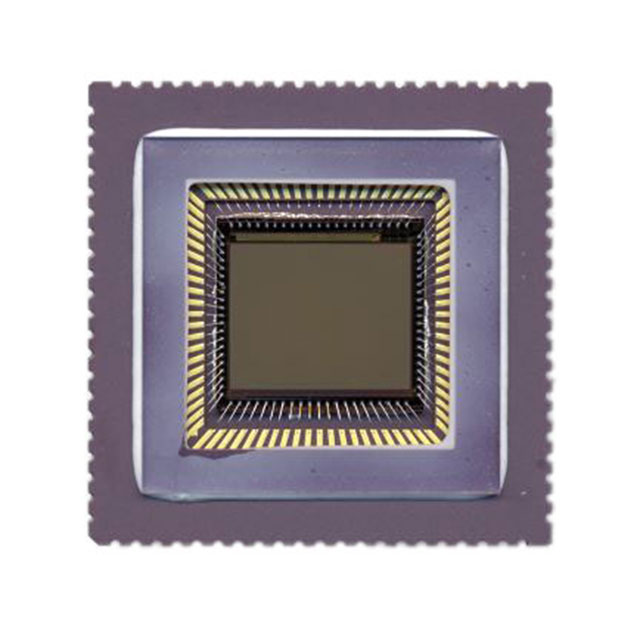

onsemi NOII4SM1300A-QDC is a monochrome CMOS image sensor featuring an active pixel array of 1286H x 1030V. With a pixel size of 7µm x 7µm, this component is designed for high-resolution imaging applications. The sensor operates at a frame rate of 7.0 fps and utilizes a 5V supply voltage. Encased in an 84-LCC package, specifically an 84-LCC (18x18) configuration, it is suitable for demanding environments. This image sensor finds utility in industrial automation, machine vision, and security surveillance systems, where precise image capture is critical. The part is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 84-LCC |
| Type | CMOS |
| Operating Temperature | - |
| Voltage - Supply | 5V |
| Pixel Size | 7µm x 7µm |
| Active Pixel Array | 1286H x 1030V |
| Supplier Device Package | 84-LCC (18x18) |
| Frames per Second | 7.0 |
