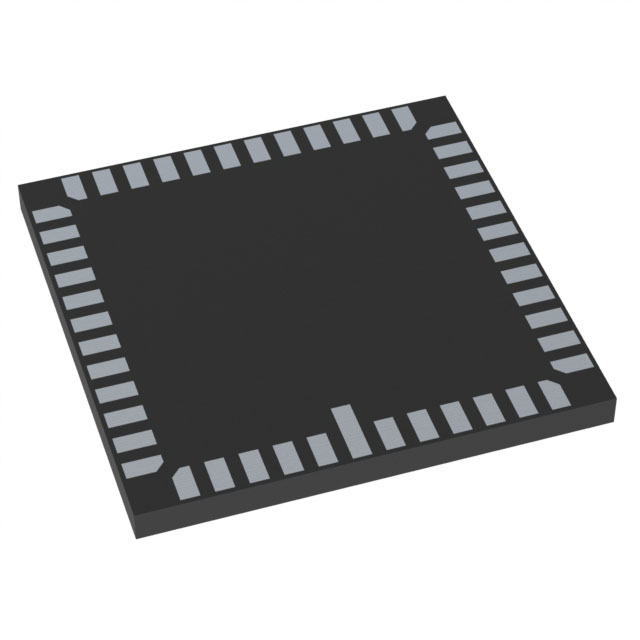

MT9V034C12STM-DR
SENSOR IMAGE VGA MONO 48-CLCCManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More
The onsemi MT9V034C12STM-DR is a VGA resolution CMOS image sensor featuring a 752H x 480V active pixel array with 6µm x 6µm pixels. This component is designed for high-performance imaging applications and is qualified to AEC-Q100 standards, indicating its suitability for the automotive industry. It offers a frame rate of up to 60 frames per second and operates within a voltage supply range of 3V to 3.6V. The sensor is housed in a 48-CLCC package with dimensions of 11.43mm x 11.43mm, provided in tray packaging. Its operating temperature range is -30°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-CLCC |
| Type | CMOS |
| Operating Temperature | -30°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.6V |
| Pixel Size | 6µm x 6µm |
| Active Pixel Array | 752H x 480V |
| Supplier Device Package | 48-CLCC (11.43x11.43) |
| Grade | Automotive |
| Frames per Second | 60.0 |
| Qualification | AEC-Q100 |
