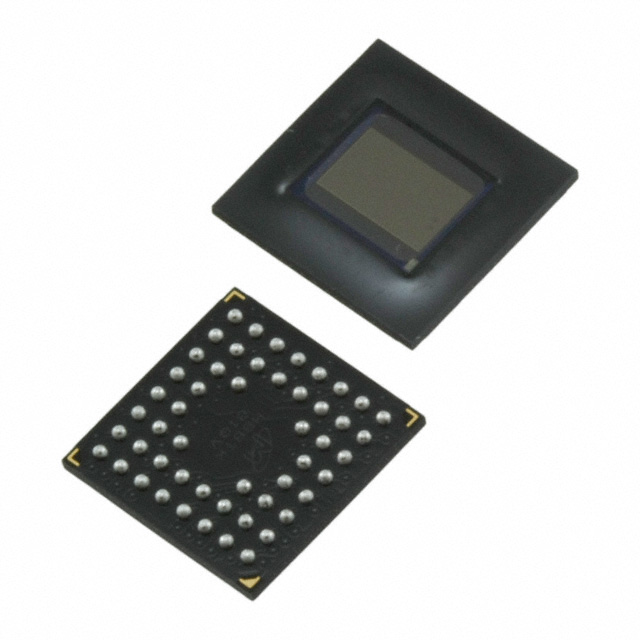

MT9V024IA7XTR-DR
SENSOR IMAGE CMOS 52IBGAManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More
onsemi MT9V024IA7XTR-DR is an automotive-grade CMOS image sensor with an active pixel array of 752H x 480V. This component features a 6µm x 6µm pixel size and operates at up to 60 frames per second. The sensor is housed in a 52-IBGA (9x9) package and is qualified to AEC-Q100 standards. Designed for demanding automotive applications, it offers a wide operating temperature range from -40°C to 105°C. The device supports a supply voltage range of 3V to 3.6V. This advanced image sensor is suitable for advanced driver-assistance systems (ADAS) and other vision-based automotive functionalities.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-LBGA |
| Type | CMOS with Processor |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3V ~ 3.6V |
| Pixel Size | 6µm x 6µm |
| Active Pixel Array | 752H x 480V |
| Supplier Device Package | 52-IBGA (9x9) |
| Grade | Automotive |
| Frames per Second | 60.0 |
| Qualification | AEC-Q100 |
