MT9P031I12STM-DP1
SENSOR IMAGE 5MP MONO CMOS 48LCCManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More

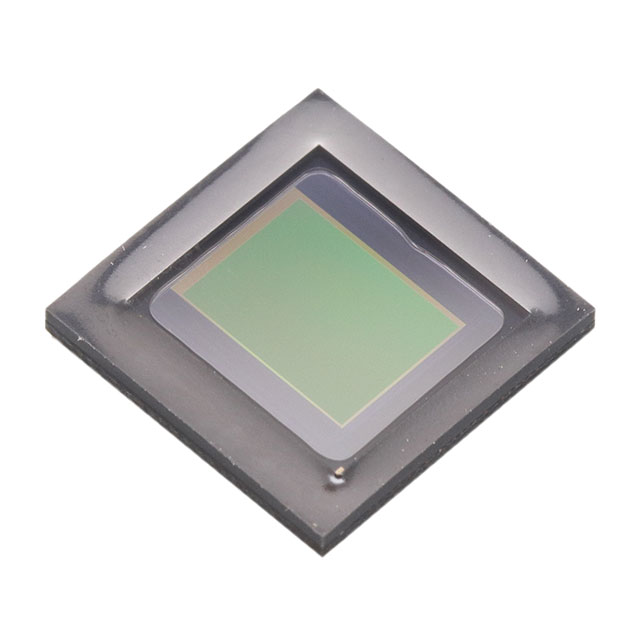

The onsemi MT9P031I12STM-DP1 is a 5-megapixel CMOS image sensor featuring a 2592H x 1944V active pixel array. Its 2.2µm x 2.2µm pixel size delivers high-resolution monochrome imaging capabilities with a frame rate of up to 53.0 fps. This component is housed in a 48-lead iLCC (10x10) package, suitable for demanding applications. Operating across a temperature range of -30°C to 70°C, it supports dual voltage supplies of 1.7V to 1.9V and 2.6V to 3.1V. The MT9P031I12STM-DP1 is commonly employed in industrial automation, machine vision, and security surveillance systems where precise image capture is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LCC |
| Type | CMOS |
| Operating Temperature | -30°C ~ 70°C |
| Voltage - Supply | 1.7V ~ 1.9V, 2.6V ~ 3.1V |
| Pixel Size | 2.2µm x 2.2µm |
| Active Pixel Array | 2592H x 1944V |
| Supplier Device Package | 48-ILCC (10x10) |
| Frames per Second | 53.0 |
