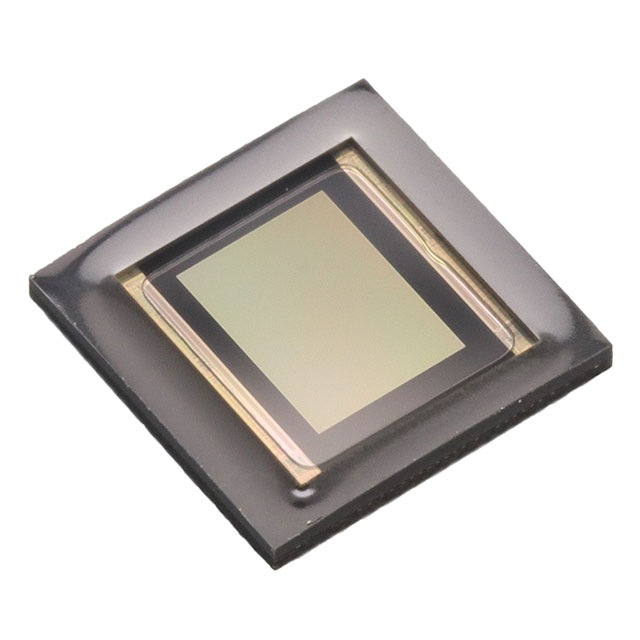

MT9P031I12STM-DP
SENSOR IMAGE 5MP MONO CMOS 48LCCManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More
The onsemi MT9P031I12STM-DP is a high-performance CMOS image sensor designed for demanding imaging applications. This component features an active pixel array of 2592H x 1944V, utilizing 2.2µm x 2.2µm pixels for detailed image capture. It supports frame rates up to 53.0 frames per second, enabling efficient data acquisition. The sensor operates within a voltage supply range of 1.7V to 3.1V and is housed in a compact 48-iLCC (10x10) package. Its operating temperature range is -30°C to 70°C, making it suitable for various industrial and commercial environments. This device is commonly employed in machine vision systems, barcode scanners, and advanced sensor modules across multiple industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LCC |
| Type | CMOS |
| Operating Temperature | -30°C ~ 70°C |
| Voltage - Supply | 1.7V ~ 3.1V |
| Pixel Size | 2.2µm x 2.2µm |
| Active Pixel Array | 2592H x 1944V |
| Supplier Device Package | 48-ILCC (10x10) |
| Frames per Second | 53.0 |
Request a Quote
