CYII5SM1300AB-QWC
SENSOR IMAGE MONO CMOS 84-LCCManufacturer: onsemi
Categories: Image Sensors, Camera
Quality Control: Learn More

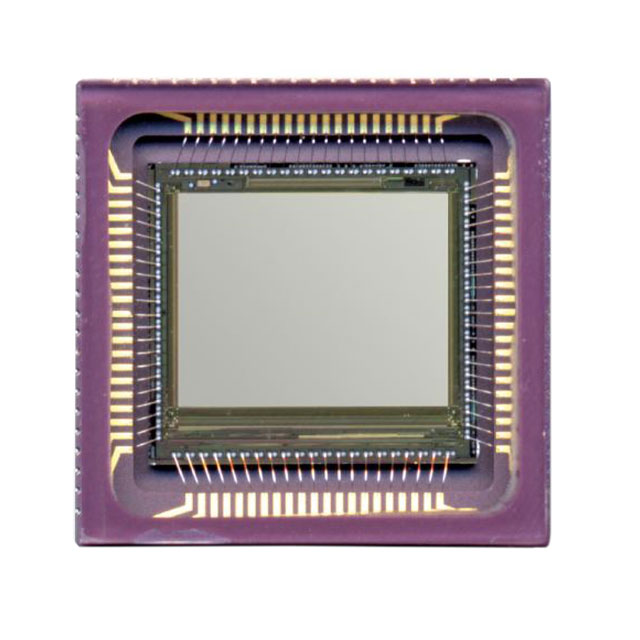

The onsemi CYII5SM1300AB-QWC is a CMOS image sensor featuring a 1280H x 1024V active pixel array. With a pixel size of 6.7µm x 6.7µm, this sensor delivers high-resolution monochrome imaging capabilities. The 84-LCC package, measuring 18x18mm, facilitates integration into compact designs. Operating within a voltage range of 3V to 4.5V, it supports frame rates up to 27.0 fps. This component is suitable for applications in industrial automation, machine vision, and security systems requiring precise visual data acquisition.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 84-LCC |
| Type | CMOS |
| Operating Temperature | - |
| Voltage - Supply | 3V ~ 4.5V |
| Pixel Size | 6.7µm x 6.7µm |
| Active Pixel Array | 1280H x 1024V |
| Supplier Device Package | 84-LCC (18x18) |
| Frames per Second | 27.0 |
Request a Quote
