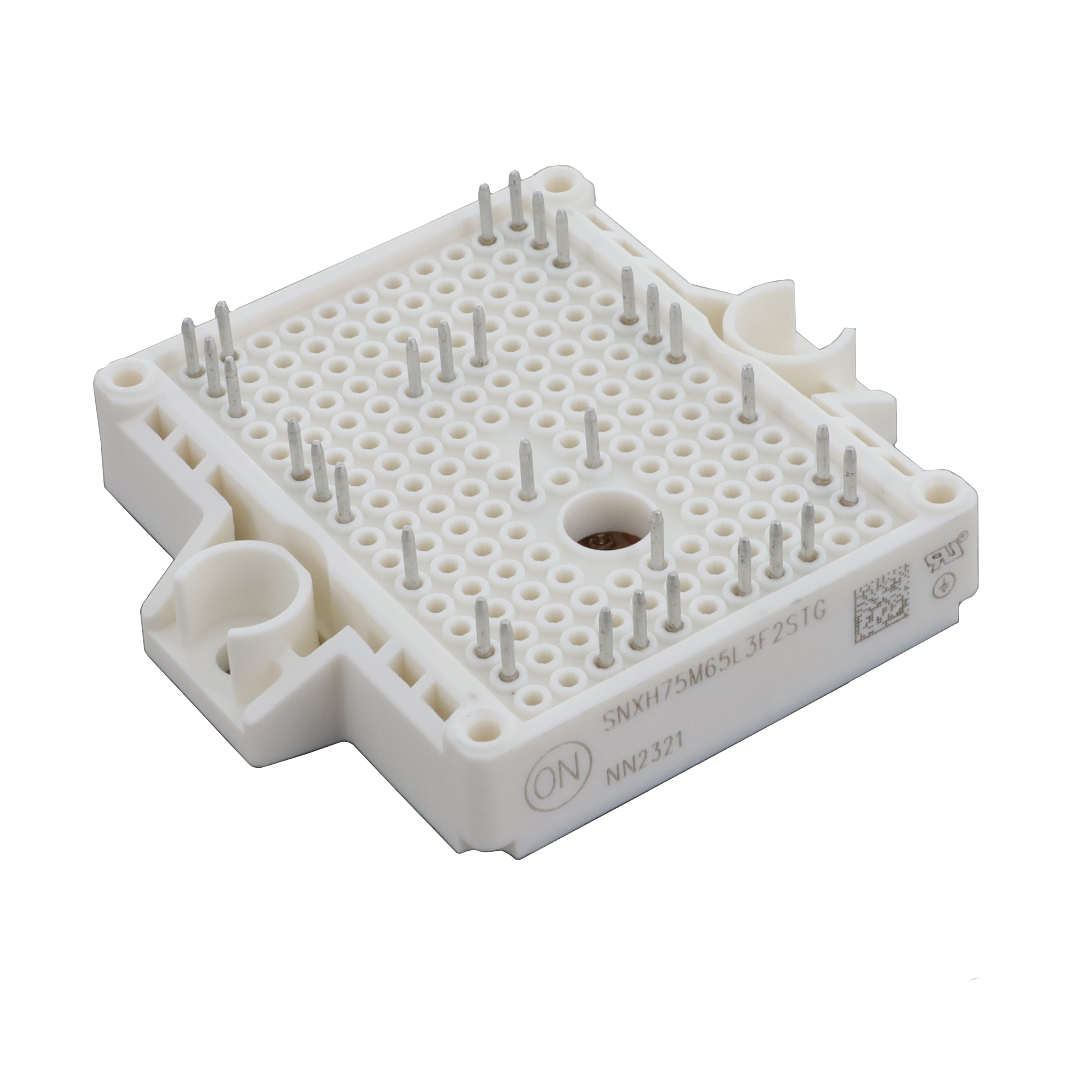

SNXH75M65L3F2STG
IGBT MODULE FULL 650V 75A 32PIMManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Field Stop Full Bridge Inverter 650 V 75 A 236 W Chassis Mount 32-PIM (56.7x42.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Full Bridge Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | 32-PIM (56.7x42.5) |
| IGBT Type | Field Stop |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Power - Max | 236 W |
| Current - Collector Cutoff (Max) | 250 µA |
