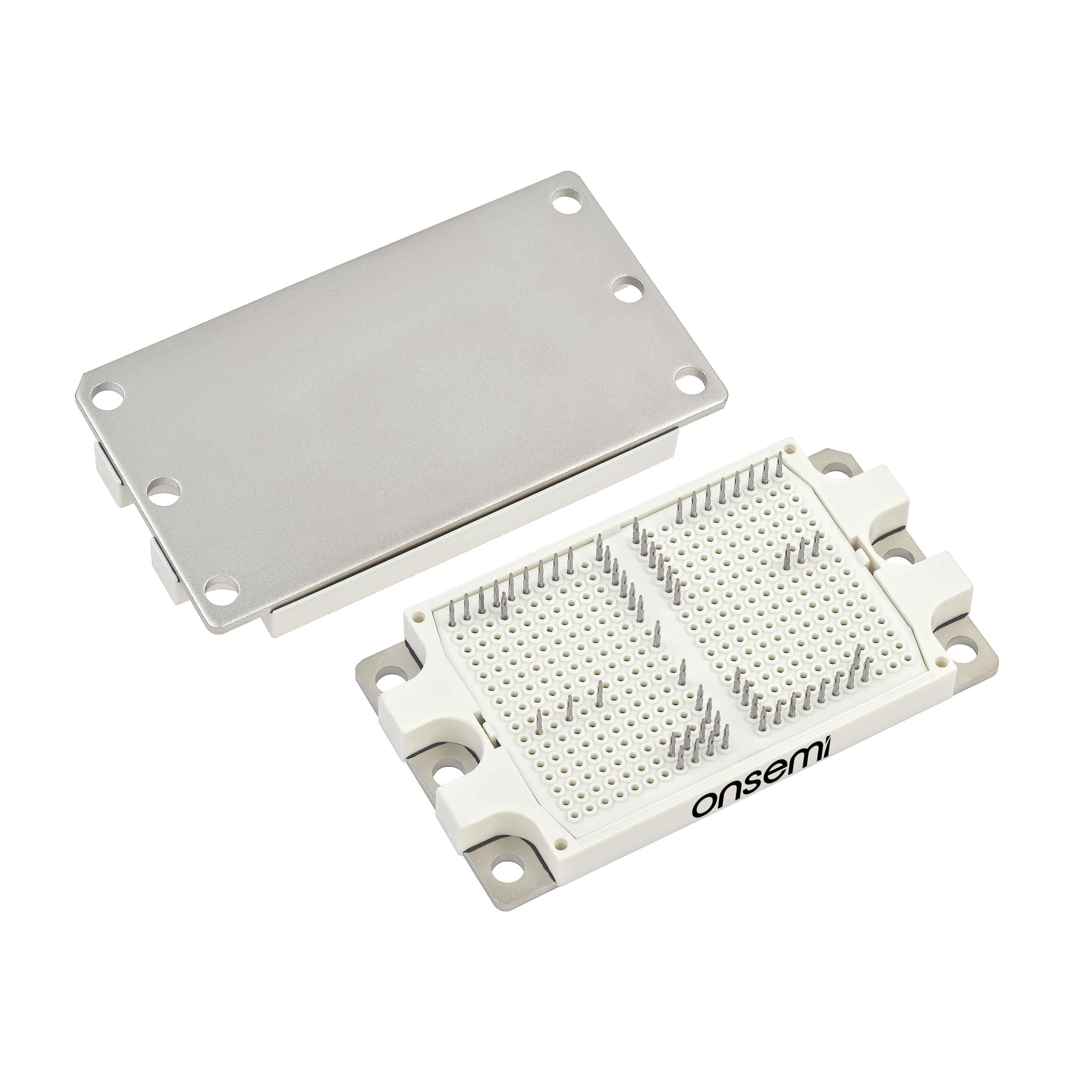

NXH800H120L7QDSG
1200V 800A QDUAL3Manufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Half Bridge 1200 V 800 A Chassis Mount 11-PIM (152x62.15)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 800A |
| NTC Thermistor | No |
| Supplier Device Package | 11-PIM (152x62.15) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 800 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 94300 pF @ 25 V |
