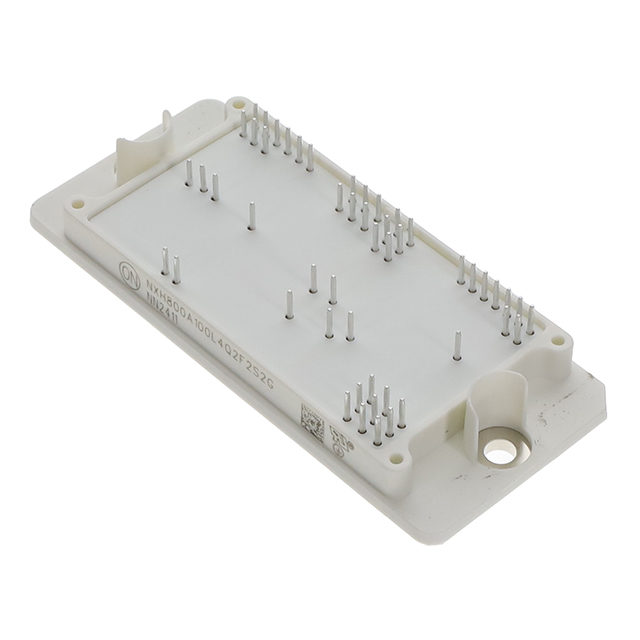

NXH800A100L4Q2F2S2G
MASS MARKET GEN3 Q2PACK NEGATIVEManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
The onsemi NXH800A100L4Q2F2S2G is a Trench Field Stop IGBT Module designed for three-level inverter configurations. This component features a 1000 V collector-emitter breakdown voltage and a maximum collector current of 309 A. With a power dissipation rating of 714 W, it is suitable for demanding applications. The module incorporates an NTC thermistor for integrated thermal monitoring. It is housed in a 51-PIM/Q2PACK (93x47) package, designed for chassis mounting. Key specifications include a Vce(on) of 2.3V at 15V gate-emitter voltage and 400A collector current, and an input capacitance (Cies) of 49.7 nF at 20V. This device operates across a junction temperature range of -40°C to 175°C. Its robust design makes it suitable for use in industrial motor drives, renewable energy systems, and power factor correction circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 400A |
| NTC Thermistor | Yes |
| Supplier Device Package | 51-PIM/Q2PACK (93x47) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 309 A |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
| Power - Max | 714 W |
| Current - Collector Cutoff (Max) | 20 µA |
| Input Capacitance (Cies) @ Vce | 49.7 nF @ 20 V |
