NXH800A100L4Q2F2S1G
MASS MARKET GEN3 Q2PACK POSITIVEManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More

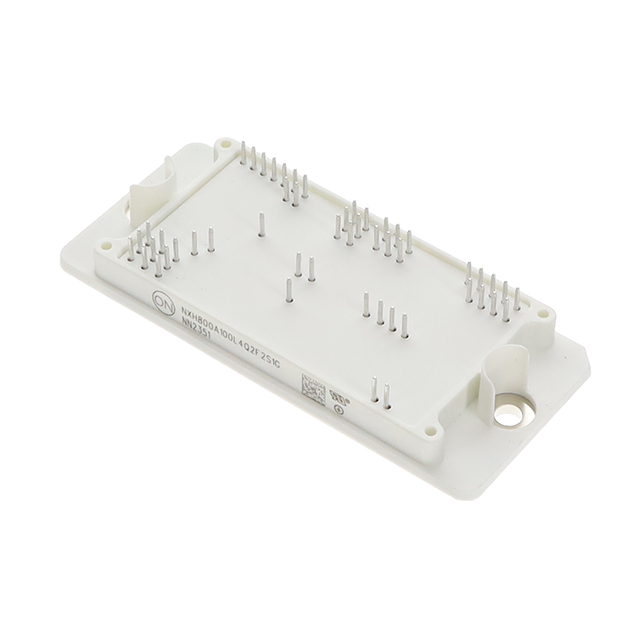

The onsemi NXH800A100L4Q2F2S1G is a Trench Field Stop IGBT Module designed for three-level inverter configurations. This component features a 1000 V collector-emitter breakdown voltage and a maximum collector current of 309 A. The module offers a low on-state voltage of 2.3V at 15V gate-emitter voltage and 400A collector current, with a maximum power dissipation of 714 W. It includes an integrated NTC thermistor for thermal monitoring and operates across a wide temperature range of -40°C to 175°C (TJ). The NXH800A100L4Q2F2S1G is housed in a 51-PIM/Q2PACK (93x47) package suitable for chassis mounting. This device is commonly utilized in power electronics applications, including industrial motor drives and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 400A |
| NTC Thermistor | Yes |
| Supplier Device Package | 51-PIM/Q2PACK (93x47) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 309 A |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
| Power - Max | 714 W |
| Current - Collector Cutoff (Max) | 20 µA |
| Input Capacitance (Cies) @ Vce | 49.7 nF @ 20 V |
