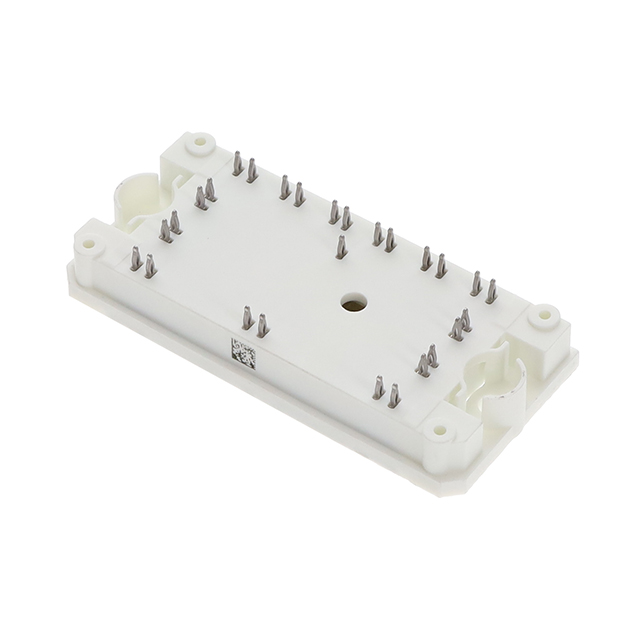

NXH75M65L4Q1PTG
6KW H6.5 75A Q1PACK PRESS-FIT PIManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Field Stop Half Bridge 650 V 59 A 86 W Chassis Mount 53-PIM/Q2PACK (93x47)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.22V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | 53-PIM/Q2PACK (93x47) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 59 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Power - Max | 86 W |
| Current - Collector Cutoff (Max) | 300 µA |
| Input Capacitance (Cies) @ Vce | 5.665 nF @ 30 V |
