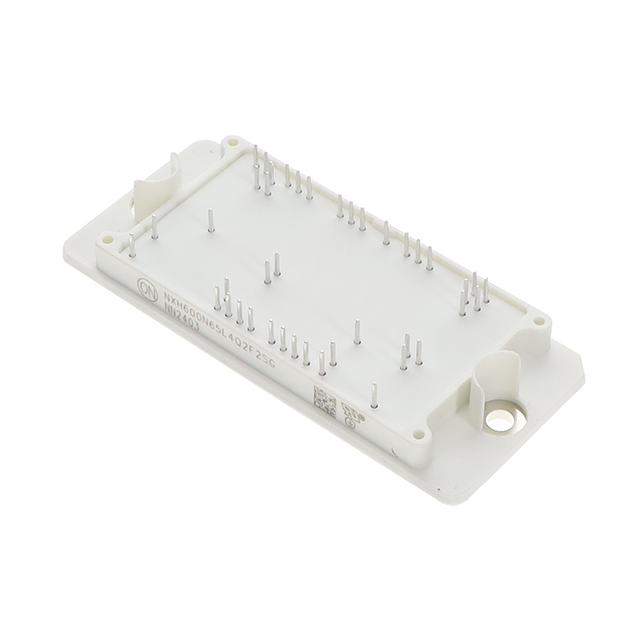

NXH600N65L4Q2F2SG
150KW 1100V Q2PACK SOLDER PINManufacturer: onsemi
Categories: IGBT Modules
Quality Control: Learn More
onsemi NXH600N65L4Q2F2SG is a high-performance IGBT module designed for demanding power applications. This Trench Field Stop IGBT features a 650V collector-emitter breakdown voltage and a maximum collector current of 483A. With a maximum power dissipation of 931W and a low Vce(on) of 2.2V at 15V gate-emitter voltage and 600A collector current, it ensures efficient operation. The module incorporates an NTC thermistor for temperature monitoring and is housed in a 41-PIM/Q2PACK chassis mount package for robust thermal management. Its three-level inverter configuration makes it suitable for use in industrial motor drives, renewable energy systems, and electric vehicle power converters.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 600A |
| NTC Thermistor | Yes |
| Supplier Device Package | 41-PIM/Q2PACK (93x47) |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 483 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Power - Max | 931 W |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 37.1 nF @ 20 V |
